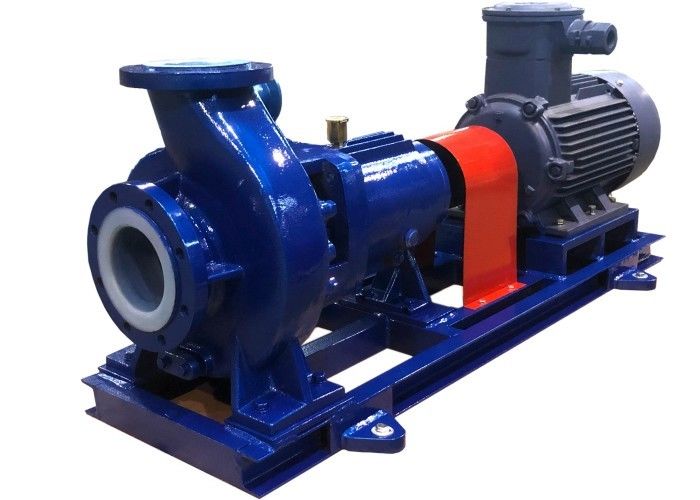

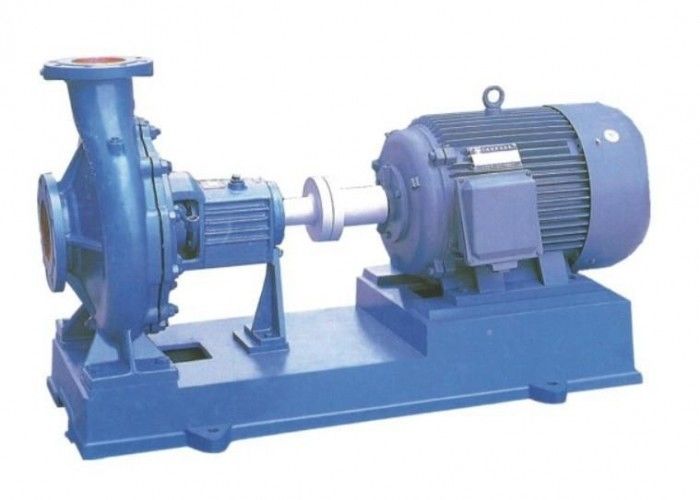

0.3 - 400m3/h Industrial Chemical Pump

0.3 - 400m3/h Industrial Chemical Pump

ISO9001 Industrial Chemical Pump

400m3/h Industrial Chemical Pump

Chemical Resistant Centrifugal Pump

Place of Origin:

China

Brand Name:

Huatao

Certification:

ISO9001

Model Number:

HT-Chemical Centrifugal Pump

Contact Us

Request A Quote
Product Details
Name:
Chemical Resistant Centrifugal Pump
Material:
Cast Iron;304;316
Head:
5~ 125m
Power:
0.55 ~ 90kw
Inlet Diameter:
32 ~ 200mm
Flow:
0.3 ~ 400m3/h
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 1500-5000 per set
Packaging Details
Wooden Box
Delivery Time
20-35 days
Payment Terms
L/C, T/T, Western Union
Supply Ability
2000 sets per month
Product Description

Cast Iron Stainless Steel Chemical Centrifugal Pump For Chemical Gas



Chemical Centrifugal Pump Description

This type of centrifugal pump is a single-stage single-suction (shaft-suction) corrosion-resistant centrifugal pump. The corrosive liquid pumped does not contain solid particles and has a viscosity similar to water. The temperature of the medium is -20°C~105°C, if necessary, cooling measures can be taken to reach a higher temperature.
Widely used in petroleum, chemical industry, metallurgy, electric power, papermaking, food, pharmaceutical, synthetic fiber and other industries.



Chemical Centrifugal Pump Range of properties

Product Name HT-Chemical Centrifugal Pump
Material Cast Iron:304 316
Head 5~ 125m
Power 0.55-90kw
Flow 0.3 ~ 400m³/h
Inlet diameter 32mm~200mm




Chemical Centrifugal Pump Feature

Wider property range Higher efficiency Higher maintenance
This series of pumps has 40 basic types, 33 of which are double-speed (2900-1450r/min), and can reach 112 specifications after cutting the diameter of the impeller.

0.3 - 400m3/h Industrial Chemical Pump 0

1. Pump body

2. Impeller

3. Impeller nut

4. Even after the line machine pump cover

5. Suspension

6. Mechanical sea gland

7. Bearing gland (pump)

8. Angular contact ball bearings

9. Pump shaft

10. Pump shaft

11. Angular contact ball bearings

12. Bearing gland (coupling)

13. Coupling

14. Shaft sleeve

15. Mechanical seal

16. Stent

17. Shield



0.3 - 400m3/h Industrial Chemical Pump 1

0.3 - 400m3/h Industrial Chemical Pump 2
