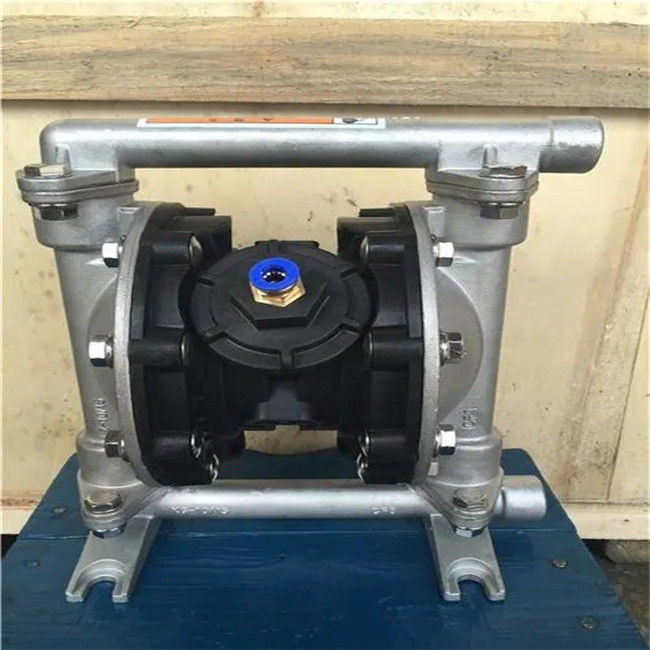

Stainless Steel Pneumatic Double Diaphragm Pump 7m Suction Lift 30m3/H Flow

Stainless Steel Pneumatic Double Diaphragm Pump 7m Suction Lift 30m3/H Flow

stainless steel pneumatic double diaphragm pump

30m3/h flow pneumatic double diaphragm pump

stainless steel double diaphragm pneumatic pump

Place of Origin:

China

Brand Name:

Huatao

Certification:

ISO

Model Number:

HT-Industrial Diaphragm Pump

Contact Us

Request A Quote
Product Details
Product Name:
Pneumatic Double Diaphragm Pump
Material:
304 Stainless Steel
Flow:
0-30m3/h
Head:
50m
Diameter:
10-100mm
Working Temperature:
-15-+120℃
Working Pressure:
0.1-0.7MPa
Suction Lift:
7m
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
USD 120-5000 per unit
Packaging Details
wooden box
Delivery Time
20-40 working days after receiving the deposit
Payment Terms
L/C, T/T, Western Union, Paypal
Supply Ability
1000 units per month
Product Description

Stainless Steel 7m Suction Lift 30m3/H Flow Pneumatic Double Diaphragm Pump



Pneumatic Double Diaphragm Pump Description

The pneumatic double diaphragm pump is small and easy to move, does not require a foundation, occupies a small area, and is easy and economical to install. Can be used as a mobile material transfer pump. Because air is used as power, the flow rate is automatically adjusted with changes in back pressure (outlet resistance), and is suitable for medium and high viscosity fluids.



Pneumatic Double Diaphragm Pump Specifications

Product Name Pneumatic Double Diaphragm Pump
Head 50m
Material 304 Stainless Steel
Flow 0-30m3/h
Diameter 10-100mm
Working Temperature -15-+120℃
Working Pressure 0.1-0.7MPa
Suction Lift 7m
Packing Wooden Box
Application Various corrosive liquids, liquids with particles, high viscosity, volatile, flammable and highly toxic liquids



Pneumatic Double Diaphragm Pump Advantages

1. Because air is used as power, the flow rate is automatically adjusted with changes in back pressure (outlet resistance), and is suitable for medium and high viscosity fluids. The working point of the centrifugal pump is set based on water. If it is used for fluids with a slightly higher viscosity, it will need to be equipped with a reducer or frequency converter, which will greatly increase the cost. The same is true for gear pumps.

2. Pneumatic pumps are reliable and low-cost in flammable and explosive environments, such as the transportation of fuel, gunpowder, and explosives, because: 1. Sparks are not possible after grounding; 2. No heat is generated during work, and the machine will not overheat. ; 3. The fluid will not overheat because the diaphragm pump stirs the fluid less.

3. In harsh construction sites, such as construction sites, industrial and mining wastewater discharges, due to the large number of impurities and complex composition in the sewage, the pipes are prone to blockage, which causes an overload on the electric pump, and the motor is easily damaged due to heat. The pneumatic diaphragm pump can pass particles and the flow rate is adjustable. When the pipeline is blocked, it will automatically stop until it becomes unobstructed.

4. In addition, the diaphragm pump is small and easy to move, does not require a foundation, occupies a small area, and is easy and economical to install. Can be used as a mobile material transfer pump.

5. In the processing of hazardous and corrosive materials, the diaphragm pump can isolate the materials from the outside world.

6. Or ensure that no impurities contaminate the raw materials in some tests.

7. It can be used to transport fluids with relatively unstable chemical properties, such as photosensitive materials, flocculation liquid, etc. This is because diaphragm pumps have low shear forces and have little physical impact on materials.



Pneumatic Double Diaphragm Pump Application

  • Pumps peanut butter, pickles, mashed potatoes, bratwurst, jam apple puree, chocolate and more.
  • Pumps paint, gum, pigments.
  • All types of adhesives and glues can be pumped.
  • All kinds of tiles, porcelain, bricks and pottery glaze.
  • Pump water accumulated in mines, tunnels, tunnels, mineral processing, and slag. Pumps cement grout and mortar.
  • Various abrasives, corrosives, oil and mud, cleaning grease and general containers.
  • Various highly toxic, flammable and volatile liquids.
  • Various strong acids, strong alkali, strong corrosive liquids.
  • Various high temperature liquids can withstand up to 150℃.
  • As a front-stage pressure supply device for various solid-liquid separation equipment

Stainless Steel Pneumatic Double Diaphragm Pump 7m Suction Lift 30m3/H Flow 0

Huatao Pumps Package, Shipment, Workshop

Stainless Steel Pneumatic Double Diaphragm Pump 7m Suction Lift 30m3/H Flow 1

Spare Parts Supply

Stainless Steel Pneumatic Double Diaphragm Pump 7m Suction Lift 30m3/H Flow 2

Huatao Pumps Application

Stainless Steel Pneumatic Double Diaphragm Pump 7m Suction Lift 30m3/H Flow 3

Exhibition and Customer Visiting

Stainless Steel Pneumatic Double Diaphragm Pump 7m Suction Lift 30m3/H Flow 4

Stainless Steel Pneumatic Double Diaphragm Pump 7m Suction Lift 30m3/H Flow 5

Please ask for pump details and price by chris@huataogroup.com, Whatsapp: 0086 137 0329 5214.

For any questions will reply within 24 hours.
