Hydromatic Sewage Water Submersible Pump Mechanical Seal 1480r/min

Hydromatic Sewage Water Submersible Pump Mechanical Seal 1480r/min

Hydromatic Submersible Pump

Submersible Sewage Water Pump Mechanical Seal

Sewage Water Submersible Pump Mechanical Seal

Place of Origin:


Brand Name:




Model Number:

HT-Submersible sewage pump

Contact Us

Request A Quote
Product Details
Product Name:
Water,Air Pump,sewage,rotary Pump
Standard Or Nonstandard:
Cast Iron,Stainless Steel,cast Iron / Stainless Steel / Cr Alloy(A05
Vertical,submersible,Submersible Sump Pumps,unblock Stainless Steel Sewage Pumps With Cutting System
Any Color,steel True Colors
Electric,1.5 ~ 315kw
Roating Spe:
Payment & Shipping Terms
Minimum Order Quantity
USD 200-5000/set
Packaging Details
Wooden box
Delivery Time
20-40days after receiving deposit
Payment Terms
T/T, L/C
Supply Ability
Product Description

Hydromatic Submersible Sewage Installation Water Pump


Submersible sewage pump Introduction

Submersible sewage pumps used for the discharge of industrial and commercial sewage, domestic sewage, drainage systems of urban sewage treatment plants, drainage stations of civil air defense systems, and water supply for waterworks.


Scope of application

1. It can pump clean water, sewage with particles and corrosive media.

2. It is suitable for the drainage system of urban sewage treatment plants, municipal engineering, construction sites, etc.

3. Applicable to chemical industry, petroleum, pharmaceutical, paper industry, etc.

4. Suitable for cement plants, steel plants, coal processing industries, etc.

5. The water supply device of the waterworks.

6. Farm sewage discharge and rural farmland irrigation.

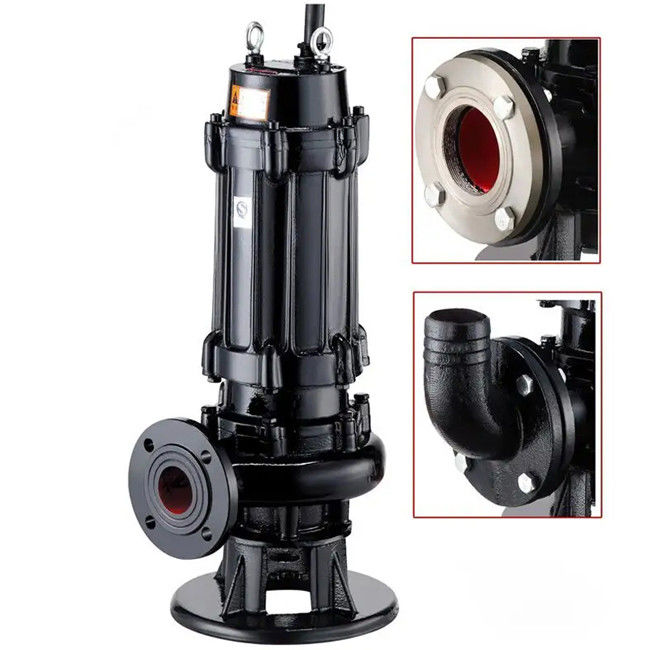

Hydromatic Sewage Water Submersible Pump Mechanical Seal 1480r/min 0

Submersible sewage advantages

1.The unique single-piece or double-blade impeller structure greatly improves the passing capacity of the dirt, and can effectively pass through fibrous materials 5 times the diameter of the pump and solid particles whose diameter is about 50% of the pump diameter.

2.The mechanical seal adopts new hard and corrosion-resistant titanium tungsten material, which can make the pump run safely and continuously for more than 8000 hours.

3.The overall structure is compact, the volume is small, the noise is low, the energy-saving effect is remarkable, and the maintenance is convenient. There is no need to build a pump room, and it can work when submerged in water, which greatly reduces the project cost.

4.There is a high-precision anti-jamming water leakage detection sensor in the sealed oil chamber of the sewage pump, and a thermal sensor is embedded in the stator winding to automatically protect the pump motor.According to the needs of users, it can be equipped with a fully automatic control cabinet to automatically protect the pump from water leakage, leakage overload and over temperature, which improves the safety and reliability of the product.

5.The float switch can automatically control the start and stop of the pump according to the change of the required liquid level, and it is easy to use without special supervision.

6.Submersible sewage pump can be equipped with double guide rail automatic coupling installation system according to user needs, which is convenient and simple to install and maintain.

7.There are two different installation methods, fixed automatic coupling installation system, mobile free installation system


Submersible sewage pump specification:

Product Name Submersible sewage pump
Material High chrome alloy
Head 10m~70m
Voltage 380V
Flow 10-1000m3/h
Suction Diameter 50mm~300mm
Discharge Diameter 50mm~300mm
Power 3KW~132kW

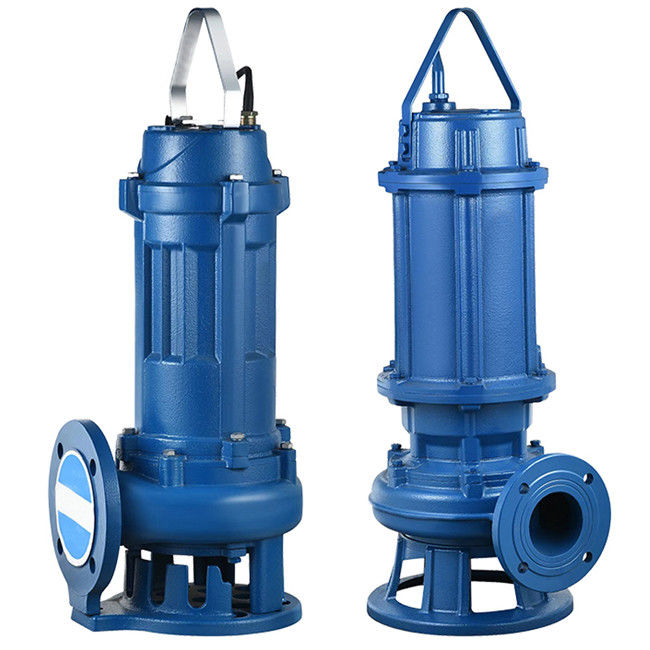

Hydromatic Sewage Water Submersible Pump Mechanical Seal 1480r/min 1Hydromatic Sewage Water Submersible Pump Mechanical Seal 1480r/min 2Hydromatic Sewage Water Submersible Pump Mechanical Seal 1480r/min 3

Please ask for pump details and price by For any questions will reply within 24 hours.
