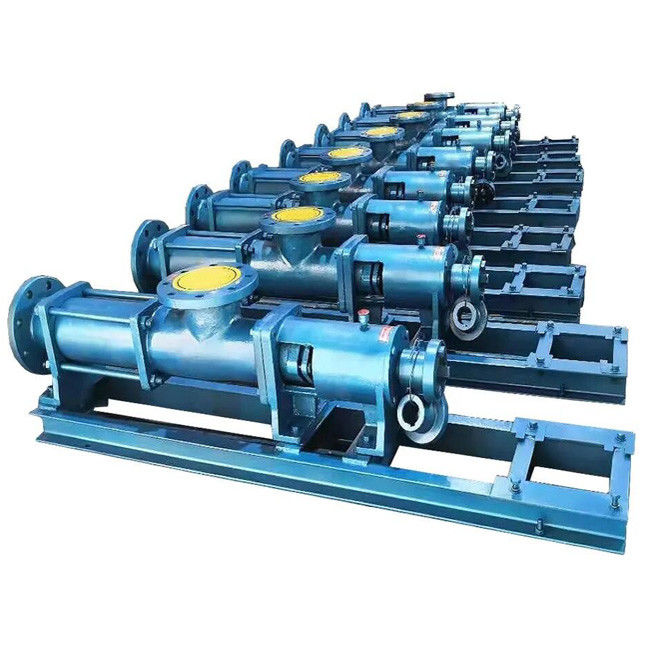

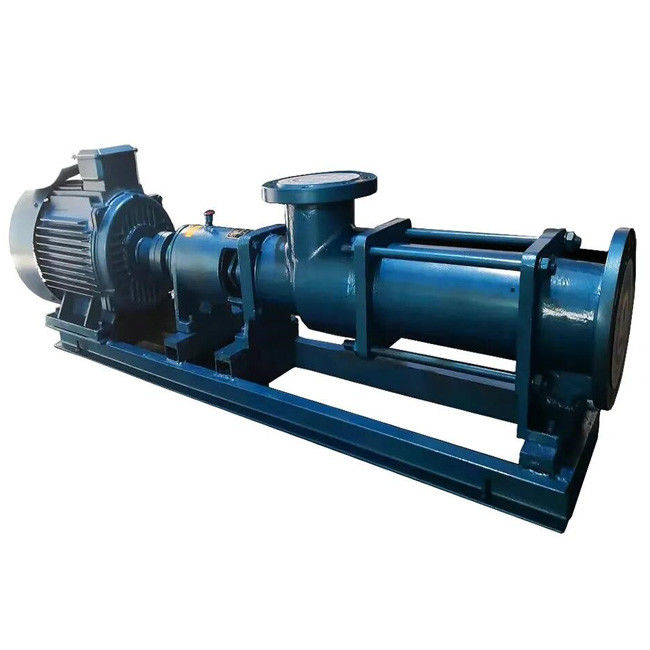

Screw Pumps For Sewage Treatment Plant
Screw Pumps Description
The screw pump uses the rotation of the screw blade to make the water body spiral upward in the axial direction. It consists of a shaft, a spiral blade, and a casing. When pumping water, place the pump obliquely in the water so that the inclination angle of the main shaft of the water pump is smaller than the inclination angle of the helical blade, and the lower end of the helical blade is in contact with the water. When the prime mover drives the screw pump shaft to rotate through the speed change device, the water enters the blades and rises along the spiral flow path until it flows out. Simple structure, easy manufacture, large flow rate, small water head loss, high efficiency, easy repair and maintenance, but low head and low speed, need to install a speed change device.
Slurry Screw Pump Specification:
| Product Name | Screw pump |
| Voltage | 220V / 380V |
| Flow | 10~90m3/h |
| Suction Diameter | 3~6 inch |
| Head | 1~ 99m |
| Power | up to 120 kw |
Screw Pump Application:
·Transportation of general neutral thick slurry.
·Transportation of general slightly acidic and alkaline slurry.
·Transportation of food, pharmaceuticals, and corrosive slurries.
·Industrial and domestic sewage and sludge treatment.
