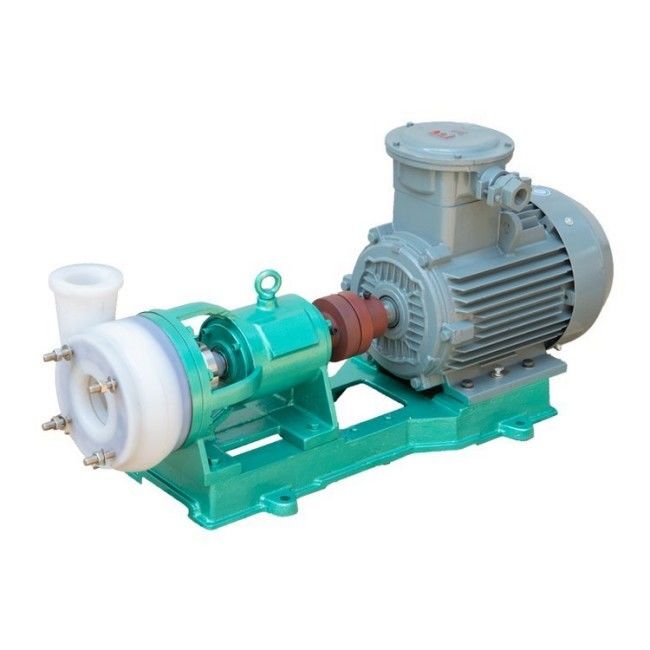

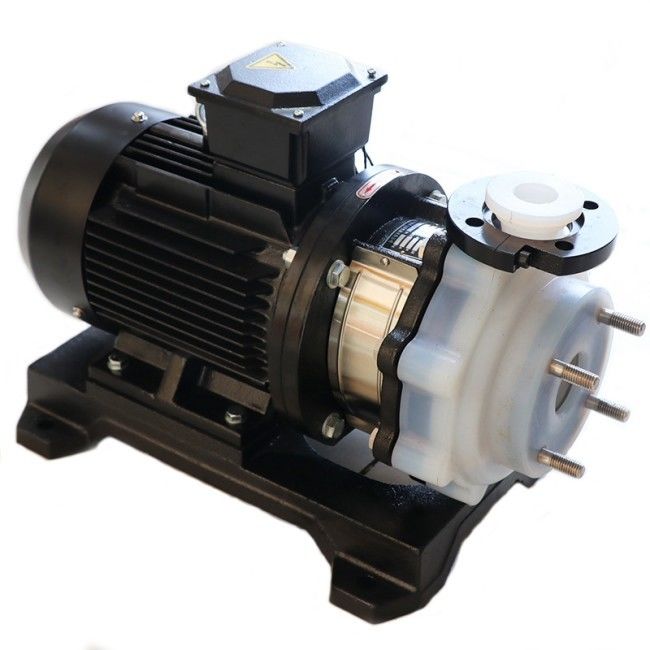

Positive Metering Electronic Fluoroplastic Reinforced Chemical Pump
Fluoroplastic Chemical Pump Introduction:
Fluoroplastic chemical pump is made of metal casing lined with teflon, impeller and pump cover integrally sintered and pressure molded by metal inserts with teflon outside, externally mounted bellows mechanical seal for shaft seal, stationary seal ring made of 99.9% aluminum oxide ceramics or silicon carbide, rotating seal ring made of tetrafluoride packing material or silicon carbide. It resists corrosion, abrasion, high temperature and aging, and has high mechanical strength, no toxin decompounding, and wide range of service temperature.
Fluoroplastic Chemical Pump Feature
| Product Name | Fluoroplastic chemical pump |
| Material | Cast Iron,Stainless Steel |
| Head |
4~250m |
| Power | 0.55-160kw |
| Flow |
1.75-130m³/h |
|
Temperature |
-85~200℃ |
Fluoroplastic Chemical Pump Application:
It is widely used in the industries of chemical, pharmaceuticals, pesticides, and paper making for liquid delivery, waste water treatment, acidification and other processes.
Fluoroplastic Chemical Pump Advantage:
Strong structure:
Strengthen ribs added on the pump body
Precision wax mould for main parts
API610 standard mechanical seal design
Dismountable couplers
• Safe and reliable
• Easy maintenance
• Low cost
• High efficiency
• Long service life
Fluoroplastic Chemical Pump Model description:
IH 50 – 32 – 125
IHF --------------- Corrosive resistant chemical pump
50 ---------------- Inlet diameter: 50mm
32 ----------------- Outlet diameter: 32mm
125 ---------------- Impeller diameter: 125mm
