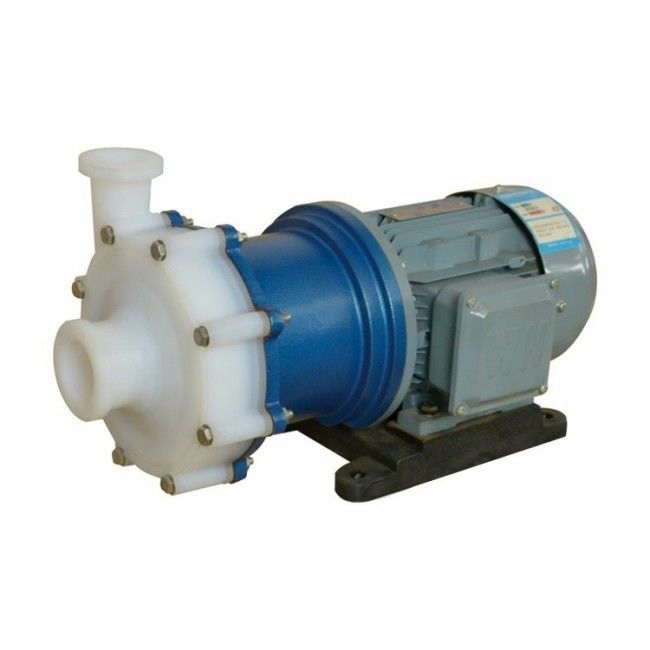

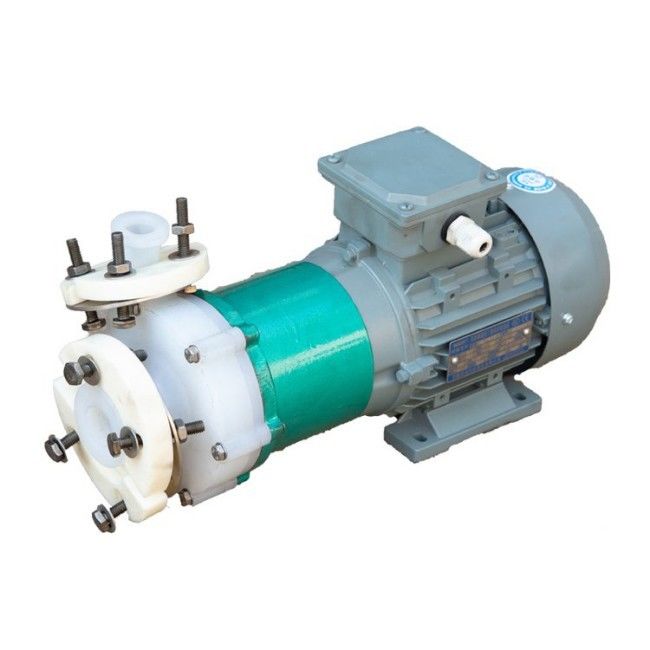

Stainless Steel Magnetic Pump Chemical Fertilizer And Pesticide Pump
Application range of magnetic pump
It is suitable for pumping and transporting acidic and alkaline liquids, oils, rare and precious liquids, toxic liquids, volatile liquids and water circulation equipment, especially for pumping and transporting flammable, leaking and explosive liquids.
Entry point temperature: -20℃～200℃.
Magnetic Pump Feature
| Product Name | Magnetic Pump |
| Material | Cast Iron,Stainless Steel |
| Head |
10~18m |
| Power | 0.55-160kw |
| Flow |
3.2-400m³/h |
|
Temperature |
-20~200℃ |
Special Preventing Leak Design Advantage of Magnetic Pump
Elimination of shaft seals and indirect drive with a magnetic coupling completely eliminates drips and leaks and will not contaminate the workplace as the pump's wetted parts are made of "thermoplastic". It can continuously transport acidic, alkaline, strong oxidants and other related corrosive media of any color without damage. It has the advantages of overall sealing, no leakage, and strong corrosion resistance.
The Principle of Operation Magnetic Pump :
The driving device is fixed on the motor shaft through the active magnetic joint, and the pump room is completely sealed. The impeller with magnets is indirectly driven in rotation via a magnetic coupling. Compact structure, safe and energy-saving.
Magnetic Pump body structure
The part contacting the liquid is thermoplastic and the armor is made of metal material. So the pump is enough to endure the weight of the channels and resist mechanical impact.
