Place of Origin:
China
Brand Name:
Huatao
Certification:
ISO9001
Model Number:
HT- Screw Pump
Contact Us

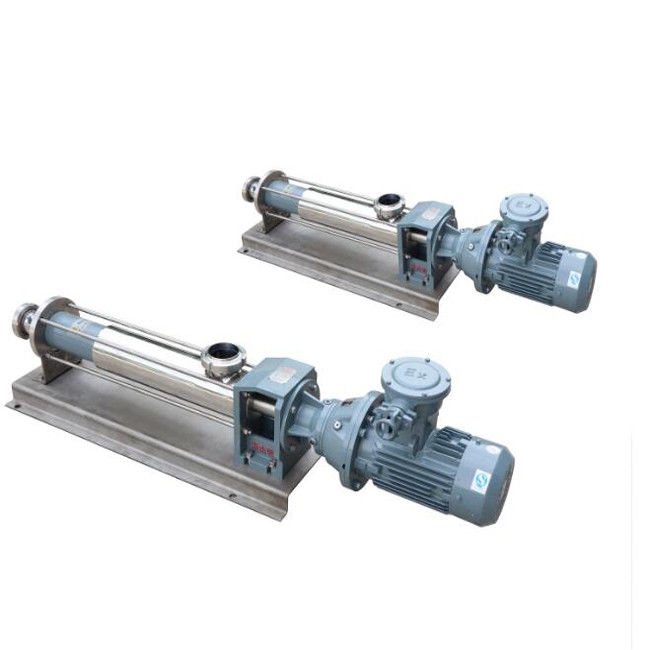

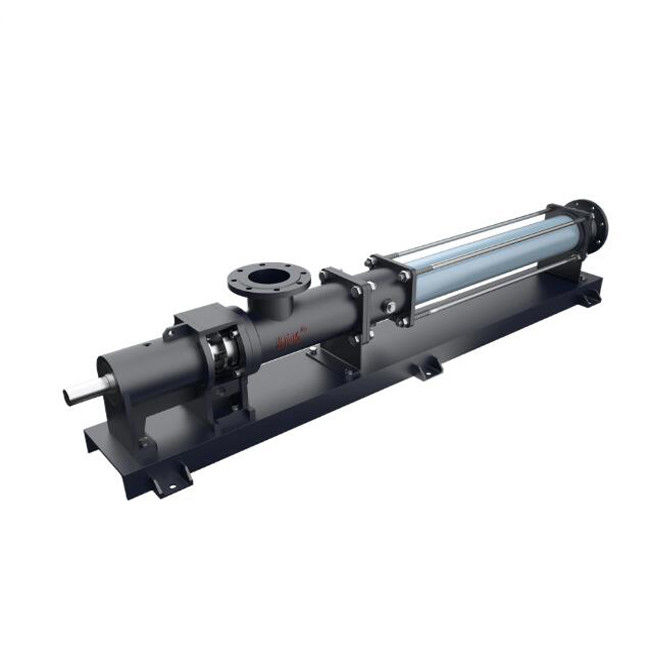

Concentrated slurry Screw pump
Screw Pumps Description
Screw pump is a part of the dry compressed gas transfer pump series. They are positive displacement pumps that use one or more screws to move fluid or water along the screw shaft. These screws interlock to pressurize the fluid and move it into the system. These screws engage each other and reciprocate in the cavity of the cylinder. They are often used in industrial vacuum applications, often in combination with Roots blowers, and as oil-free roughing pumps in high vacuum and ultra-high vacuum systems. Please check out the description of various pumps
Operation Principle
A screw pump is a type of positive displacement pump that uses one or more screws to move fluids through a system. The screw(s) rotate in a cylindrical chamber, and as they turn, they trap fluid and move it from the inlet to the outlet of the pump. Screw pumps are known for their ability to handle a wide range of fluids, including high viscosity liquids, slurries, and liquids with solid particles. They can also operate at high pressures and with low pulsation, making them a popular choice for many industrial applications.
Application
1. Environment protection: Industrial and life sewage treatment, oily water treatment,the delivery of various muddy water with solid particles and short fiber, oil-water separation and waste gas project, measuring addition of flocculant and its chemical agents.
2. Petrochemical industry: The delivery of clean/heavy oil, acid, alkail and salt solution,various viscous pasty and milky chemical grout, oil-water separation and waste oil recycling system, polymer delivery.
3. Exploration and mining:Delivery drilling mud, mining water supply and drainage, water supply of mining dust shaker,mortar and concrete painting of mining laneway wall.
4. Medicine and food:Delivery medical ointment, syrup,jam,fermentation broth,honey,cream,starch paste,toothpaste, etc.
5. Ship building:bilge cleaning pump, marine incinerator delivery pump, oil-water separator matching pump, the delivery of cabin oily water and other medium.
6. Energy industry:The delivery of various fuel oil, coal-water-slurry, resin, additive.
7. Paper-making industry:The delivery of various pulp, short stock, slurry and waster water treatment,chemical measurement, stoichiometry,raw material preparation, coating and coloring process.
8.Electrolyte processing:The delivery of various cream,milk,suspension and other medium cannot be stirred and cut.
9. Mining engineering: the preparation and delivery of coal water slurry, the manufacturing and preparation of titanium white, kaolin, etc, filling and grouting.
10. Mechanical engineering:Oil-water mixture, sludge with metals,metallurgy slurry
waste bunker emptying.
11. Construction industry: The delivery of cement motra, painting, lime milk and other paste liquid.
Slurry Screw Pump Specification:
Product Name | Screw pump |
Voltage | 220V / 380V |
Flow | 10~90m3/h |
Suction Diameter | 3~6 inch |
Head | 1~ 99m |
Power | up to 120 kw |
Material | Cast iron/Stainless Steel(SS304/SS316L/SS904) |
Warranty | 1 year |
