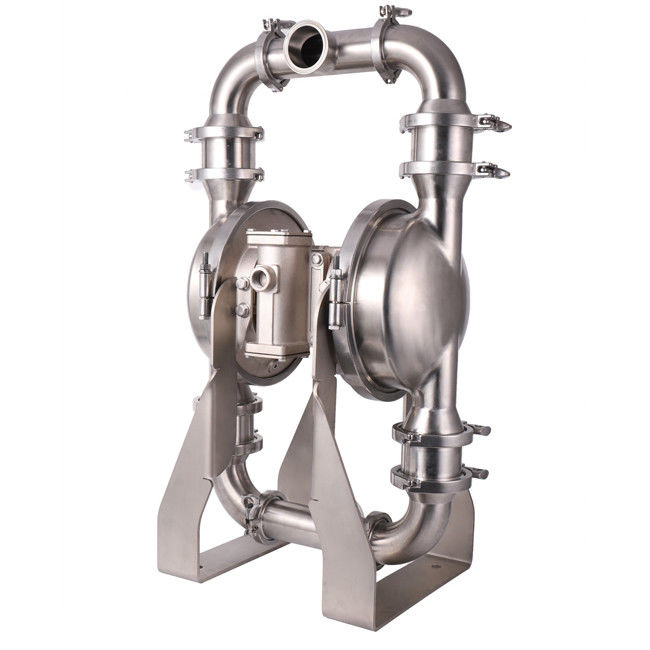

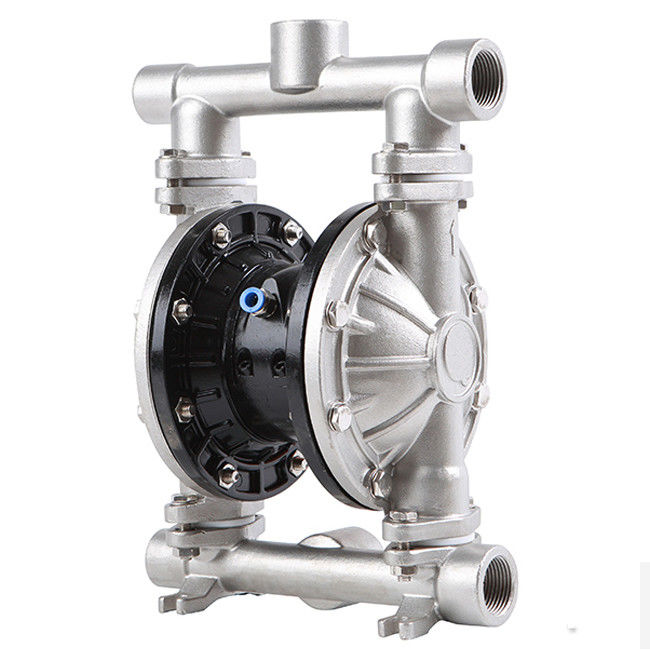

Energy Efficiency Industrial Diaphragm Pump For Wastewater Treatment Air Operated
Industrial Diaphragm Pump Introduction
Industrial pneumatic diaphragm pumps offer reliable and efficient pumping solutions for a wide range of industrial applications. They are versatile, easy to maintain, and can handle challenging fluids with ease.One of the advantages of industrial pneumatic diaphragm pumps is their ability to handle fluids with high viscosity, solids, and even shear-sensitive fluids without damaging or altering the fluid's properties. They can also run dry without damage and are self-priming, which reduces the need for manual intervention.
Industrial Diaphragm Pump Technical Features
Industrial Diaphragm Pump Scope Of Application
Industrial Diaphragm Pump Main Features
Industrial Diaphragm Pump Performance Parameter Table
Product Name | Energy-Saving Industrial Pneumatic Diaphragm Pump Low Risk Of Leakage For Various Liquids |
Max flowrate | Up to 1000 L/min |
Max pressure | Up to 8.6 MPa |
Head | Customizable |
Solids handling | Up to 10 mm |
Air inlet size | 1/4 inch NPT |
Fluid inlet/outlet size | 1 inch NPT |
Max temperature | Up to 120°C |
Max viscosity | Up to 5000cps |
Wetted materials | Aluminum, Stainless Steel, PTFE, Santoprene |
Air supply pressure | 1.4 - 8.6 bar |
Air consumption | 0.4 - 1.2 m³/min |
Noise level | 70 - 75 dB(A) |
Features | Self-priming, dry running, no seals, low pulsation |
Applications | Chemical transfer, paint circulation, ink transfer, wastewater treatment, food processing |
Huatao Supply The Spare Parts For All Kinds of Pump
Huatao Pumps Application
Huatao Pumps Package, Shipment, Workshop
Exhibition And Customer Visting
Please ask for pump details and price by chris@huataogroup.com, Whatsapp: 0086 137 0329 5214.
For any questions will reply within 24 hours.
