Place of Origin:
China
Brand Name:
Huatao
Certification:
ISO 9001
Model Number:
HT-Petroleum chemical pump
Contact Us
High Head Electronic Fluoroplastic Reinforced Chemical Pump Acid And Alkali Resistance
Fluoroplastic Chemical Pump Introduction:

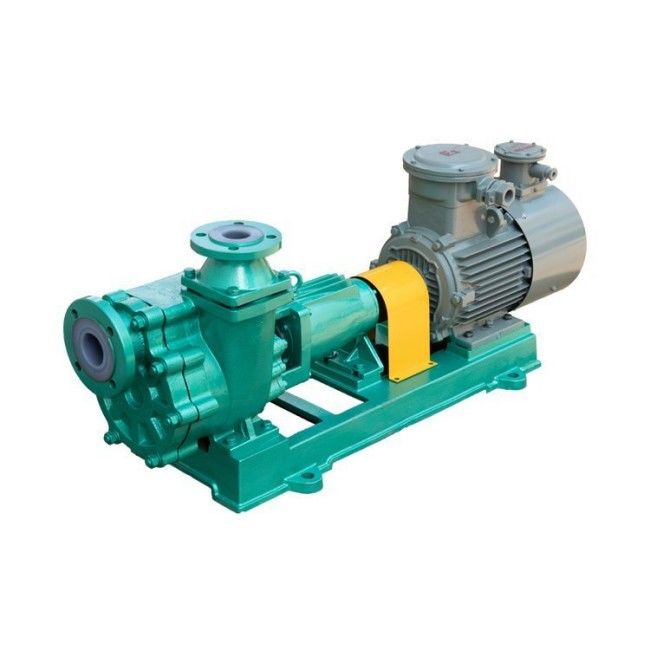

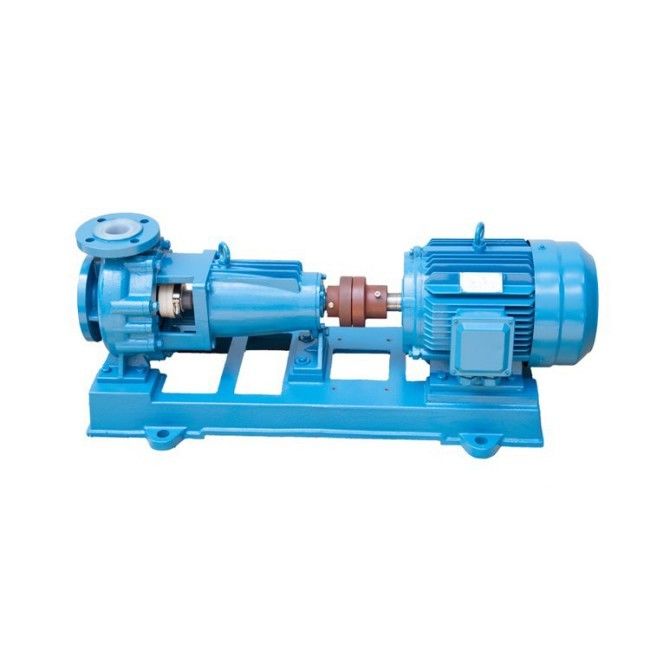

The fluoroplastic chemical pump is made of a metal shell lined with PTFE. The impeller and pump cover are integrally sintered and molded by PTFE outer metal inserts. The shaft seal adopts an external bellows mechanical seal, 99.9% alumina ceramics Or fixed seal ring made of silicon carbide, PTFE packing or rotary seal ring made of silicon carbide. Corrosion resistance, wear resistance, high temperature resistance, aging resistance, high mechanical strength, non-toxic decomposition, wide temperature range.
Fluoroplastic Chemical Pump Feature
| Product Name | Fluoroplastic chemical pump |
| Material | Cast Iron,Stainless Steel |
| Head |
4~250m |
| Power | 0.55-160kw |
| Flow |
1.75-130m³/h |
|
Temperature |
-85~200℃ |
Fluoroplastic Chemical Pump Application:
It is widely used in chemical, pharmaceutical, pesticide and paper industries for liquid transfer, wastewater treatment, acidification and other processes.
Fluoroplastic Chemical Pump Advantage:
Strong structure:
Strengthen ribs added on the pump body
Precision wax mould for main parts
API610 standard mechanical seal design
Dismountable couplers
• Safe and reliable
• Easy maintenance
• Low cost
• High efficiency
• Long service life
Fluoroplastic Chemical Pump Model description:
IH 50 – 32 – 125
IHF --------------- Corrosive resistant chemical pump
50 ---------------- Inlet diameter: 50mm
32 ----------------- Outlet diameter: 32mm
125 ---------------- Impeller diameter: 125mm
