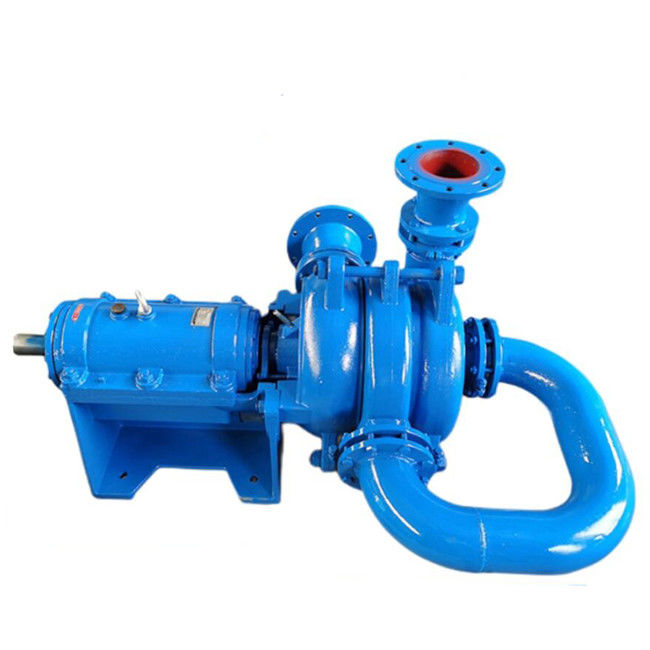

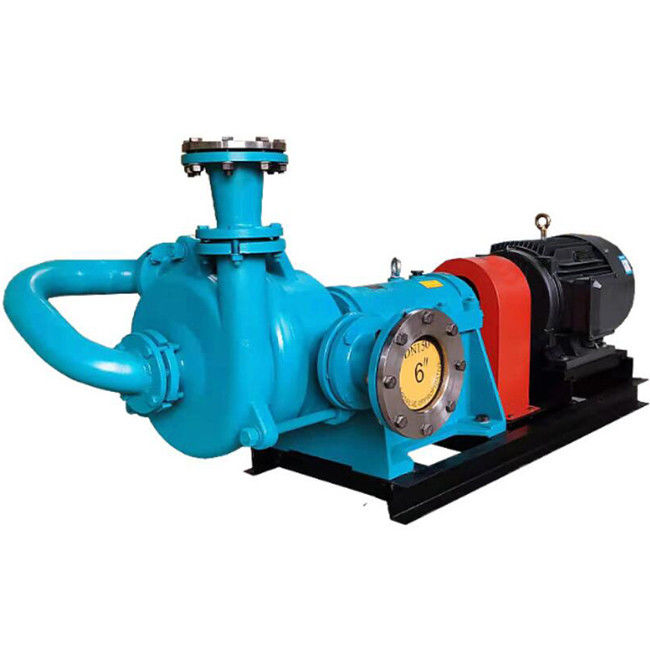

High Pressure Non Clogging Filter Press Feed Pump Plate And Frame Feed Pump
Filter Press Feed Pump Description:
Filter press feed pump adopts a unique hydraulic design and impeller installation method, which ensures that its performance curve is steeper than that of ordinary impurity pumps. It is very suitable for the change of resistance when feeding the filter press to achieve large flow, low pressure feeding and Small flow, high pressure filtration purposes. Its special hydraulic performance coincides with the gradual process of the filter press from cavity to filling and then to drying. In the initial stage of feeding, no valve is used to control the motor overload caused by excessive flow rate. At the same time, the low pressure will not impact the frame of the filter plate, which reduces the damage of the filter cloth on the frame of the filter plate, and will not impact the filter plate to cause vibration. Small flow and high pressure are not easy to cause the pump to hold back. Especially in the late stage of pressing, the unique installation method of the impeller and the function of the auxiliary impeller of the same pump under high pressure can ensure that the shaft seal is basically leak-free.
Filter Press Feed Pump Application:
1, Mining: The Filter Press Feed Pump is frequently used in the mining industry to transfer slurry into a filter press for the separation of minerals and other solids from the liquid stream.
2, Chemical processing: The Filter Press Feed Pump is used in chemical processing plants to transfer slurries of chemicals and other materials into a filter press for separation.
3, Food and beverage: The Filter Press Feed Pump is used in the food and beverage industry to transfer slurries of food and beverage materials, such as fruit juice or beer, into a filter press for clarification or separation.
4, Oil and gas: The Filter Press Feed Pump is used in the oil and gas industry to transfer drilling fluids, such as mud, into a filter press for the removal of solids before the fluid is reused.
5, Pharmaceuticals: The Filter Press Feed Pump is used in the pharmaceutical industry to transfer slurries of drugs, chemicals, and other materials into a filter press for purification or separation.
6, Waste treatment: The Filter Press Feed Pump is used in waste treatment plants to transfer sludge or other waste materials into a filter press for the removal of solids before the liquid is further processed or disposed of.
Filter Press Feed Pump Specifications:
Product Name |
Filter Press Feed Pump |
Material | Wear-resistant cast steel, 304, 316L, duplex steel, engineering plastics, polytrifluoroethylene, fluoroplastics, etc. |
Flow | 27.5-279m3/h |
Rotating Speed | 1480r/min |
Voltage | 380V |
Motor | 30-90KW |
Structure | Adopting a semi open impeller |
Filtration Pressure | 0.3-1.6MPA |
Application | Petroleum, chemical, starch pharmaceutical, pesticide, dye, paint, leather, paper, food and other industries |
