Place of Origin:
China
Brand Name:
Huatao
Certification:
ISO 9001
Model Number:
HT-Vertical Centrifugal Slurry Pump
Contact Us
Vertical Slurry Pump Description

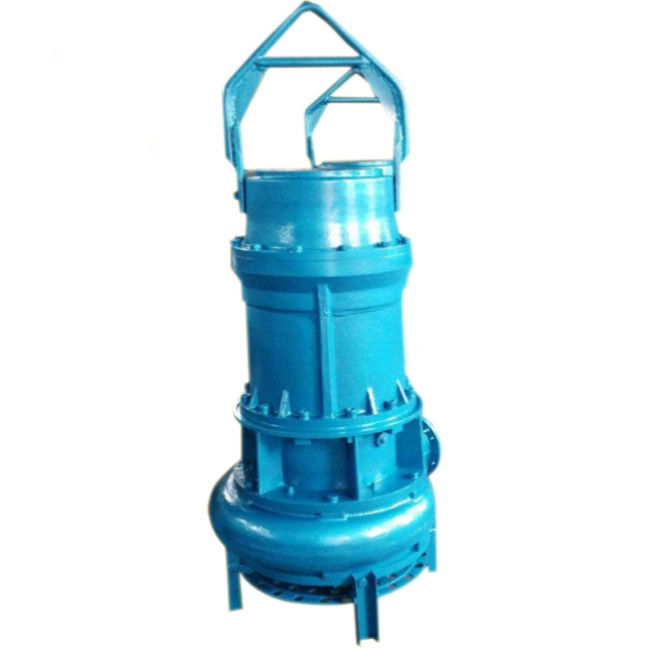

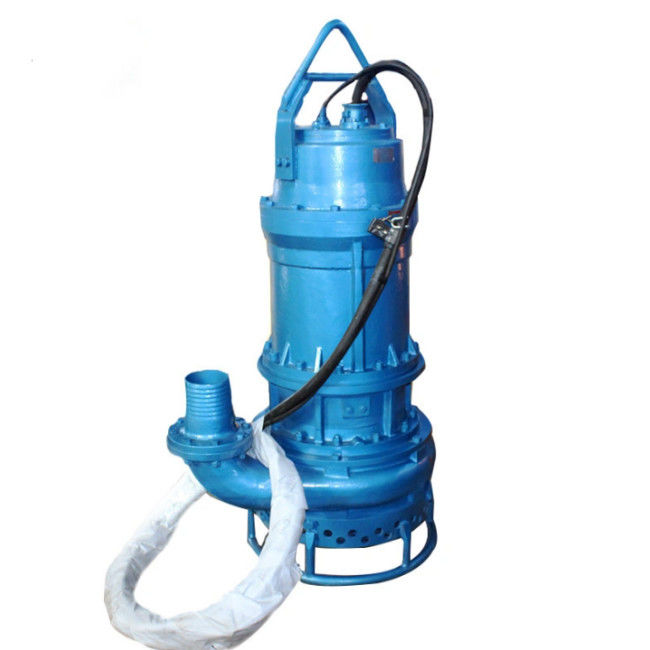

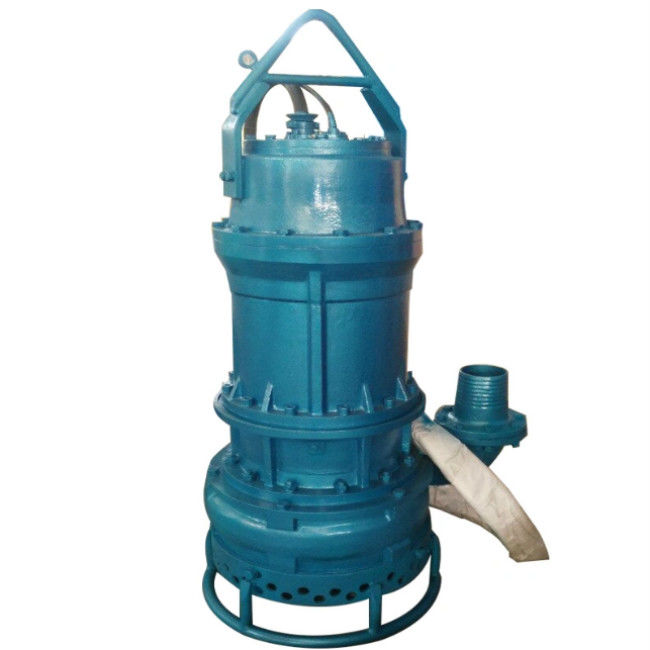

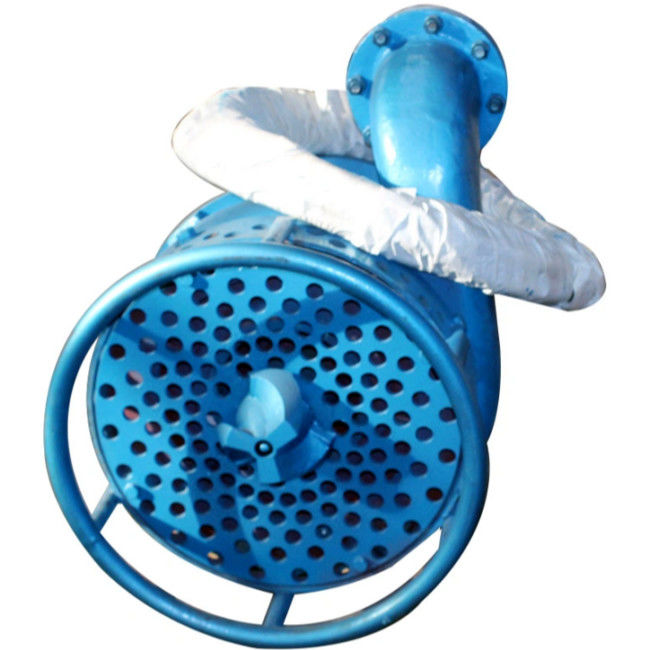

HT-ZJQ submersible Slurry motor pump is a kind of hydraulic mechanism which motor connects directly with pump. The pump adopts excellent material, advanced structure, and it is with wide flowing passage & strong delivery ability. The hydraulic parts are wear-resistant. The pump is yet completed with control unit. The pump set consists of main impeller and vice impeller. The main impeller is used for absorbing and delivering solid-liquid mixture, the vice impeller is used for spraying or stirring solid-liquid mixture to help the impeller delivering.
Vertical Slurry Pump Application
Delivering Liquid Sand, Coal Cinder Solid
Clearing The Mud In Lake, River, Sea
Dredging Widening Channel
Vertical Slurry Pump Specification
| NO. | Type | Discharge | Capacity | Head | Motor Power |
Speed | MAX. Solid Dia. |
Weight | ||
| Dia.mm | M3/H | M | KW | r/min | kg | |||||
| mm | ||||||||||
| 1 | ZJQ45-15-5.5 | 80 | 45 | 15 | 5.5 | 1460 | 13 | 100 | ||
| 2 | ZJQ15-20-5.5 | 80 | 15 | 20 | 5.5 | 1460 | 13 | 100 | ||
| 3 | ZJQ50-10-5.5 | 80 | 50 | 10 | 5.5 | 1460 | 13 | 100 | ||
| 4 | ZJQ15-20-7.5 | 80 | 15 | 20 | 7.5 | 1460 | 13 | 114 | ||
| 5 | ZJQ20-15-7.5 | 80 | 20 | 15 | 7.5 | 1460 | 13 | 114 | ||
| 6 | ZJQ25-20-7.5 | 80 | 25 | 20 | 7.5 | 1460 | 13 | 114 | ||
| 7 | ZJQ25-30-7.5 | 80 | 25 | 30 | 7.5 | 1460 | 13 | 114 | ||
| 8 | ZJQ30-30-7.5 | 80 | 30 | 30 | 7.5 | 1460 | 13 | 114 | ||
| 9 | ZJQ32-20-7.5 | 80 | 32 | 20 | 7.5 | 1460 | 13 | 114 | ||
| 10 | ZJQ25-40-11 | 80 | 25 | 40 | 11 | 1460 | 13 | 300 | ||
| 11 | ZJQ40-25-11 | 80 | 40 | 25 | 11 | 1460 | 13 | 165 | ||
| 12 | ZJQ50-21-11 | 80 | 50 | 21 | 11 | 1460 | 13 | 165 | ||
| 13 | ZJQ50-26-11 | 80 | 50 | 26 | 11 | 1460 | 13 | 165 | ||
| 14 | ZJQ70-20-11 | 80 | 70 | 20 | 11 | 1460 | 13 | 165 | ||
| 15 | ZJQ100-18-11 | 100 | 100 | 18 | 11 | 1460 | 21 | 217 | ||
| 16 | ZJQ25-40-15 | 80 | 25 | 40 | 15 | 1460 | 13 | 330 | ||
| 17 | ZJQ50-26-15 | 80 | 50 | 26 | 15 | 1460 | 13 | 180 | ||
| 18 | ZJQ50-28-15 | 80 | 50 | 28 | 15 | 1460 | 13 | 180 | ||
| 19 | ZJQ60-30-15 | 100 | 60 | 30 | 15 | 1460 | 13 | 220 | ||
| 20 | ZJQ70-24-15 | 80 | 70 | 24 | 15 | 1460 | 13 | 180 | ||
| 21 | ZJQ75-25-15 | 100 | 75 | 25 | 15 | 1460 | 13 | 220 | ||
| 22 | ZJQ100-18-15 | 100 | 100 | 18 | 15 | 1460 | 21 | 250 | ||
| 23 | ZJQ150-15-15 | 100 | 150 | 15 | 15 | 1460 | 21 | 250 | ||
| 24 | ZJQ150-18-18.5 | 150 | 150 | 18 | 18.5 | 980 | 32 | 550 | ||
| 25 | ZJQ200-12-18.5 | 150 | 200 | 12 | 18.5 | 980 | 45 | 550 | ||
| 26 | ZJQ150-22-22 | 150 | 150 | 22 | 22 | 980 | 32 | 580 | ||
| 27 | ZJQ200-15-22 | 150 | 200 | 15 | 22 | 980 | 45 | 580 |
| 28 | ZJQ100-35-30 | 150 | 100 | 35 | 30 | 980 | 21 | 550 |
| 29 | ZJQ108-30-30 | 150 | 108 | 30 | 30 | 980 | 21 | 550 |
| 30 | ZJQ150-30-30 | 150 | 150 | 30 | 30 | 980 | 21 | 550 |
| 31 | ZJQ200-20-30 | 150 | 200 | 20 | 30 | 980 | 21 | 550 |
| 32 | ZJQ300-15-30 | 200 | 300 | 15 | 30 | 980 | 28 | 700 |
| 33 | ZJQ100-50-37 | 150 | 100 | 50 | 37 | 980 | 21 | 850 |
| 34 | ZJQ300-20-37 | 200 | 300 | 20 | 37 | 980 | 28 | 775 |
| 35 | ZJQ400-15-37 | 200 | 400 | 15 | 37 | 980 | 28 | 775 |
| 36 | ZJQ150-35-45 | 150 | 150 | 35 | 45 | 980 | 36 | 1000 |
| 37 | ZJQ200-30-45 | 150 | 200 | 30 | 45 | 980 | 36 | 1000 |
| 38 | ZJQ500-15-45 | 250 | 500 | 15 | 45 | 980 | 46 | 1100 |
| 39 | ZJQ150-45-55 | 150 | 150 | 45 | 55 | 980 | 21 | 1140 |
| 40 | ZJQ250-35-55 | 150 | 250 | 35 | 55 | 980 | 36 | 1140 |
| 41 | ZJQ600-15-55 | 250 | 600 | 15 | 55 | 980 | 46 | 1140 |
| 42 | ZJQ200-45-75 | 150 | 200 | 45 | 75 | 980 | 21 | 1540 |
| 43 | ZJQ350-35-75 | 200 | 350 | 35 | 75 | 980 | 28 | 1550 |
| 44 | ZJQ400-25-75 | 200 | 400 | 25 | 75 | 980 | 25 | 1550 |
| 45 | ZJQ500-20-75 | 200 | 500 | 20 | 75 | 980 | 25 | 1550 |
