Place of Origin:
China
Brand Name:
Huatao
Certification:
ISO9001
Model Number:
HT-Chemical Centrifugal Pump
Contact Us

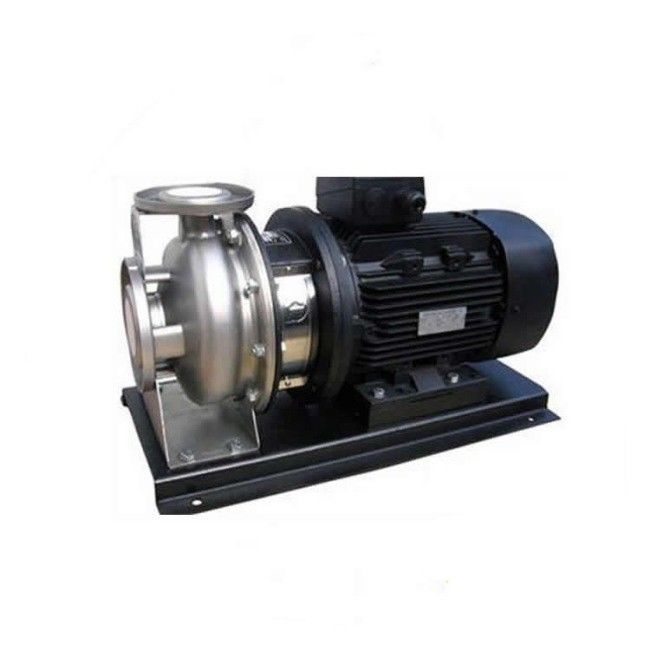

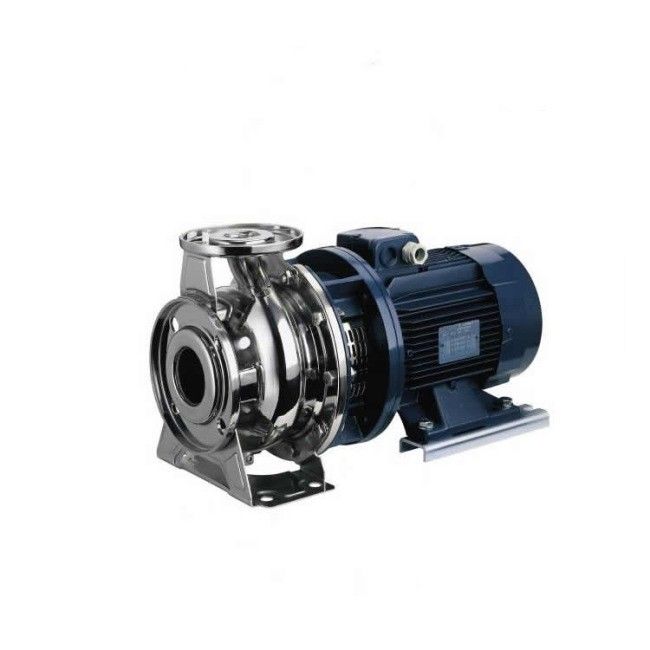

Stainless Steel Chemical Centrifugal Pump Shaft Sleeve Pump Cover
Chemical Centrifugal Pump Description
This type of centrifugal pump is a single-stage single-suction (shaft-suction) corrosion-resistant centrifugal pump. The corrosive liquid pumped does not contain solid particles and has a viscosity similar to water. The temperature of the medium is -20°C~105°C, if necessary, cooling measures can be taken to reach a higher temperature.
Widely used in petroleum, chemical industry, metallurgy, electric power, papermaking, food, pharmaceutical, synthetic fiber and other industries.
Chemical Centrifugal Pump Range of properties
| Product Name | HT-Chemical Centrifugal Pump |
| Material | Cast Iron:304 316 |
| Head | 5~ 125m |
| Power | 0.55-90kw |
| Flow | 0.3 ~ 400m³/h |
| Inlet diameter | 32mm~200mm |
Chemical Centrifugal Pump Feature
Wider property range Higher efficiency Higher maintenance
This series of pumps has 40 basic types, 33 of which are double-speed (2900-1450r/min), and can reach 112 specifications after cutting the diameter of the impeller.
1. Pump body
2. Impeller
3. Impeller nut
4. Even after the line machine pump cover
5. Suspension
6. Mechanical sea gland
7. Bearing gland (pump)
8. Angular contact ball bearings
9. Pump shaft
10. Pump shaft
11. Angular contact ball bearings
12. Bearing gland (coupling)
13. Coupling
14. Shaft sleeve
15. Mechanical seal
16. Stent
17. Shield
