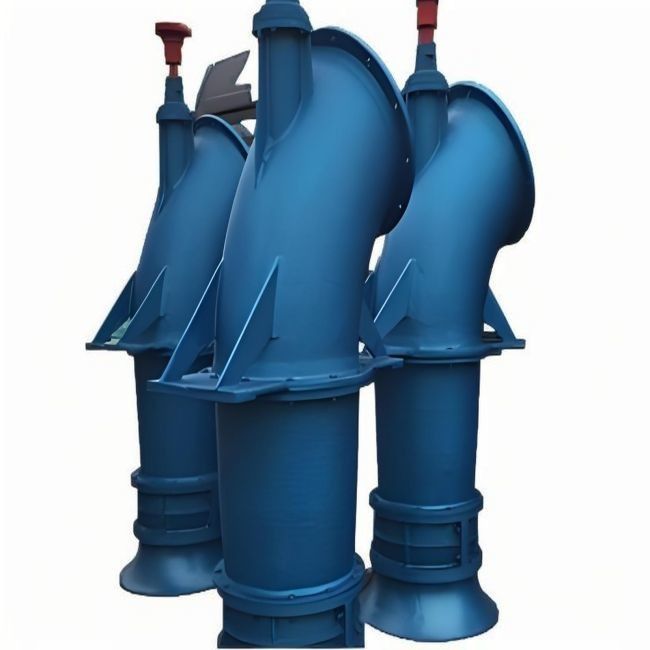

Large Flow Clean Water Axial Flow Pump 700m3/h-30000m3/h Cast Iron / Stainless Steel

Large Flow Clean Water Axial Flow Pump 700m3/h-30000m3/h Cast Iron / Stainless Steel

Axial Flow Pump 30000m3/H

Axial Flow Pump 700m3/H

Large Flow Axial Water Pump

Place of Origin:

China

Brand Name:

Huatao

Certification:

ISO 9001

Model Number:

HT-Axial-flow pump

Contact Us

Request A Quote
Product Details
Name:
Clean Water Axial-flow Pump
Material:
Cast Iron , Stainless Steel
Power:
11KW-780KW
Usage:
Water
Flow:
700~30000 M³/h
Head:
2~ 20m
Rotor Diameter:
300~1480mm
Voltage:
380V、660V、6kV
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 15000-150000 per set
Packaging Details
Wooden Box
Delivery Time
35~50 days
Payment Terms
L/C, T/T, Western Union
Supply Ability
200 sets per month
Product Description

Large Flow Axial-Flow Propeller Pump High Efficiency Turbine Connecting Parts



Axial-flow pump description



An axial flow pump is a pump that uses the force generated by the rotating impeller blades to transport liquid in the axial direction. There are several types of vertical, horizontal, inclined and tube pumps. The special thrust bearing is adopted, with reasonable structural design, sufficient lubrication, good heat dissipation, long service life of the bearing, remote control and automatic control, saving time and labor for installation and maintenance, and saving costs. It is mainly suitable for low water head and high flow conditions, such as irrigation, drainage, dock drainage, water level regulation of channel locks, or as a large circulating water pump in power plants. High-head axial flow pumps (two-stage if necessary) for waterjet propulsion of shallow water vessels.



Axial-flow pump Specification



Product name Axial-flow Pump
Material Cast Iron,stainless steel
Head 2~25m
Power 15~1400KW
Flow 700~89842m³/h
Usage Water liquld



Axial-flow pump Matters Needing Attention

During the test run of the axial flow pump, the connecting parts should be checked to ensure that the connecting parts are not loose.
The electrical appliances and instruments of the axial flow pump should work normally; the pipelines of oil, gas and water systems should have no leakage; check whether the pressure and hydraulic pressure are normal.
Regularly check whether there are floating objects near the water inlet to prevent blockage.
The temperature of rolling bearings in axial flow pumps should not exceed 75°C. The temperature of the oil in the gearbox should be normal.
Pay attention to the sound and vibration of the water pump at any time, and stop it immediately for inspection if any abnormality is found.



Large Flow Clean Water Axial Flow Pump 700m3/h-30000m3/h  Cast Iron / Stainless Steel 0Large Flow Clean Water Axial Flow Pump 700m3/h-30000m3/h  Cast Iron / Stainless Steel 1





Large Flow Clean Water Axial Flow Pump 700m3/h-30000m3/h  Cast Iron / Stainless Steel 2
