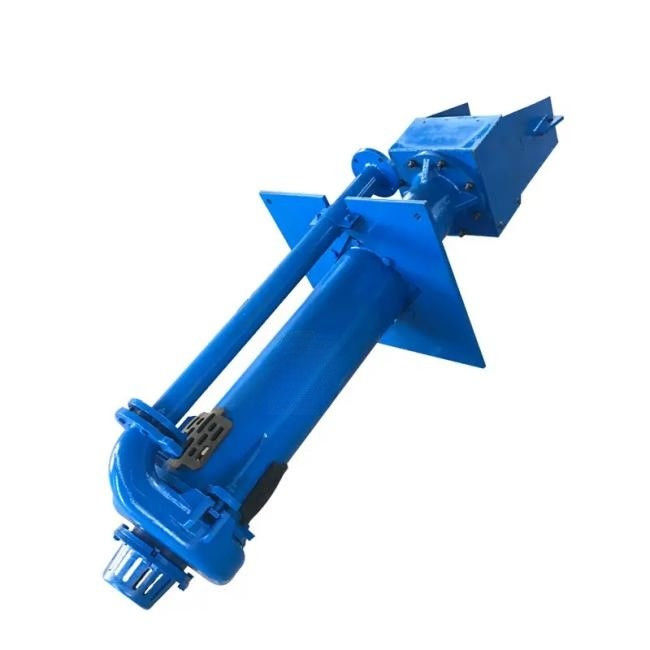

High-Pressure Semi-Closed Impeller Vertical Submersible Sump Slurry Pumps
Vertical Centrifugal Slurry Pump Introduce
The slurry pump is a single counter-level, single suction cantilever structure, with a bearing seat, supporting seat, and connecting pipe connected hydraulic parts of the pump, the liquid is discharged from the liquid pipe components, the impeller of the pump is a semi-opened impeller, and impeller blade inlet extension is provided with mixing blades, the main characteristics of the pump is in the liquid part of the pump shaft, there is enough stiffness, impeller, pump shell between the bearing, do not use shaft seal, A medium containing a larger concentration of fixed particles can be transported. The length of the pump under the liquid insertion is between 800-2000, with a suction pipe if necessary. The shaft seal uses a larger pump inserted into the liquid operation, without shaft seal, transmission by a vertical motor installed on the motor support and support seat, with a coupling connected to the pump.
The transmission mode of the pump: the pump is connected to the motor through the elastic coupling, and the pump rotates clockwise from the direction of the prime mover.

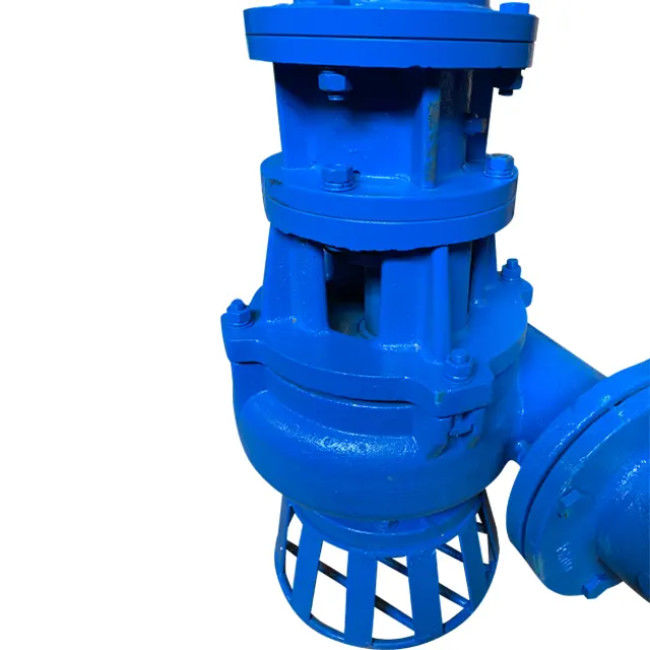

Submersible Slurry Pump is a vertical but only suction cantilever centrifugal pump structure. The impeller is a semi-opened vane, and stirring blades are provided at the extension of the suction side of the impeller.
Two series of pumps are mainly used in environmental protection, municipal engineering, thermal power plants, gas coking plants, oil refineries, steel mills, mining, paper industry, cement factory, food factory, printing, and dyeing industries to suck the thick liquid, heavy oil, oil residue, dirty liquid, mud, mortar, sand, and urban sewage drains flowing sludge, as well as a liquid containing coal ash slag. Can also be used as a chemical, pharmaceutical, and other industries suction containing mud and sand slag fluid and corrosive liquid.
Vertical Slurry Pump Specification
Size (discharge): 40mm to 300mm
Capacity: 7.28-1300 m3/h
Head: 3m-45 m
Handing solids: 0-79mm
Concentration: 0%-70%
Materials: high chrome alloy or anti-abrasive rubber
Vertical Centrifugal Slurry Pump Material
Natural rubber can work in the range of pH 1~13 in the range of service temperature.
High chromium metals can only work in the range of pH 5 ~ 12;
Special metal materials can work in the range of pH 1 ~ 14.
Vertical Centrifugal Slurry Pump Application
Minerals processing and Tailing delivery
CIL (Carbon-In-Leaching) gold processing
Accident slurry return
Coal preparation
Sand and gravel discharging
Chemical processing
Effluent handing
Vertical Centrifugal Slurry Pump Specification
| Model | Matching power P(KW) |
Capacity Q(m³/h) |
Head H(m) |
Speed n(r/min) |
Eff.η (%) |
Impeller Dia. (mm) |
Max. particles (mm) |
Weight (kg) |
| 40VS-PV | 1.1-15 | 7.2-29 | 4-28.5 | 1000-2200 | 40 | 188 | 12 | 300 |
| 65VS-QV | 3-30 | 18-113 | 5-31.5 | 700-1500 | 60 | 280 | 15 | 500 |
| 100VS-RV | 5.5-75 | 40-289 | 5-36 | 500-1200 | 62 | 370 | 32 | 920 |
| 150VS-SV | 11-110 | 108-576 | 8.5-40 | 500-1000 | 52 | 450 | 45 | 1737 |
| 200VS-SV | 15-110 | 180-890 | 6.5-37 | 400-850 | 64 | 520 | 65 | 2800 |
| 250VS-TV | 18.5-200 | 261-1089 | 7-33.5 | 400-750 | 60 | 575 | 65 | 3700 |
| 300VS-TV | 22--200 | 288-1267 | 6-33 | 350-700 | 50 | 610 | 65 | 3940 |
Vertical Slurry Pump Application
Minerals processing and Tailing delivery
CIL (Carbon-In-Leaching) gold processing
Accident slurry return
Coal preparation
Sand and gravel discharging
Chemical processing
Effluent handing
