Place of Origin:
China
Brand Name:
Huatao
Certification:
ISO 9001
Model Number:
HT- Vertical Centrifugal Slurry Pump
Contact Us

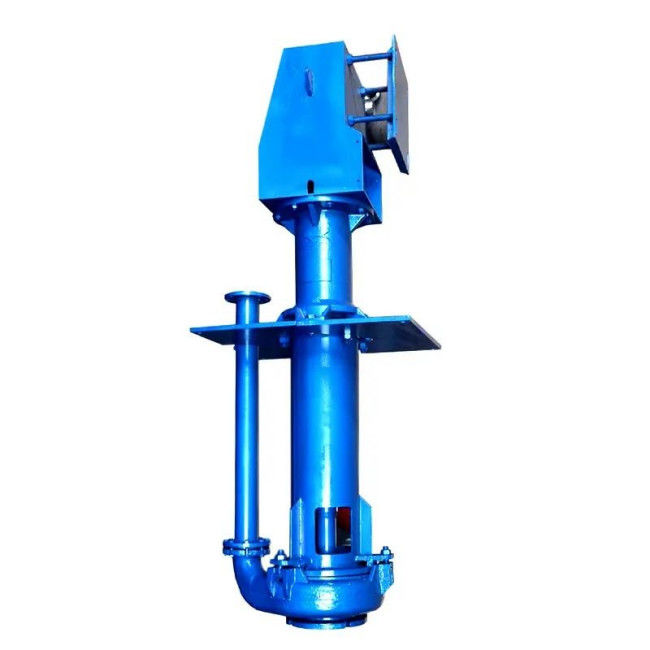

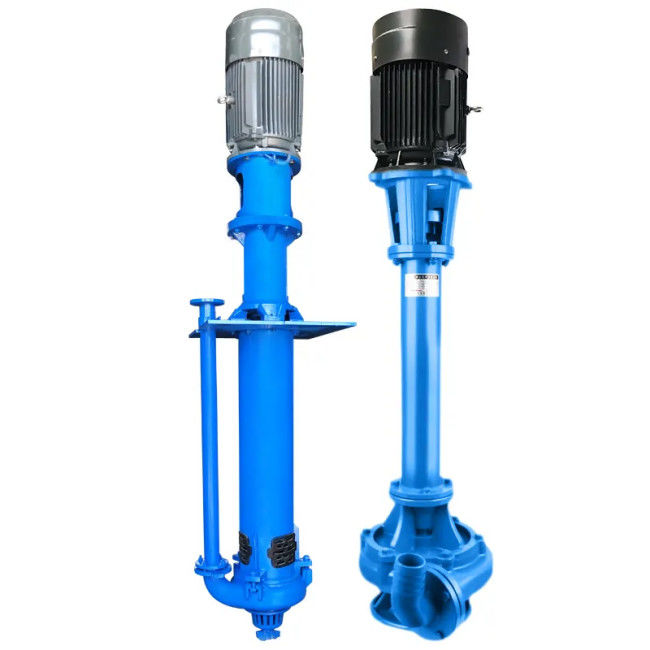

Vertical Joint Surface Sump Vertical Centrifugal Slurry Pump For Chemical Industry
Vertical Centrifugal Slurry Pump Introduce
1. From the motor to the pump end, the pump is counterclockwise.
2. The pump adopts a long shaft structure, the insertion depth can reach 10 meters, the shaft connection structure is safe and reliable, and the disassembly is convenient.
3. When the pump starts, the impeller is immersed in the medium, so it is easy to start, and there is no problem with exhaust pumping.
4. Rotor parts can be an axial adjustment, and the use of multi-point support, and stable and reliable pump operation, can be used to lengthen the suction pipe, increase the insertion depth, make full use of their own suction process, the length of the rotor is shortened, rigidity is enhanced, life is prolonged, economic and reasonable.
5. Sliding bearing can choose external cooling lubrication or self-cooling lubrication.
6. The outlet flange is divided into half movable flange for easy connection.
7. Equipped with low-speed motor, low noise, stable operation, long service life.
Vertical Slurry Pump Specification
Size (discharge): 40mm to 300mm
Capacity: 7.28-1300 m3/h
Head: 3m-45 m
Handing solids: 0-79mm
Concentration: 0%-70%
Materials: high chrome alloy or anti-abrasive rubber
The slurry pump is a single counter-level, single suction cantilever structure, with a bearing seat, supporting seat, and connecting pipe connected hydraulic parts of the pump, the liquid is discharged from the liquid pipe components, the impeller of the pump is a semi-opened impeller, and impeller blade inlet extension is provided with mixing blades, the main characteristics of the pump is in the liquid part of the pump shaft, there is enough stiffness, impeller, pump shell between the bearing, do not use shaft seal, A medium containing a larger concentration of fixed particles can be transported. The length of the pump under the liquid insertion is between 800-2000, with a suction pipe if necessary. The shaft seal uses a larger pump inserted into the liquid operation, without shaft seal, transmission by a vertical motor installed on the motor support and support seat, with a coupling connected to the pump.
The transmission mode of the pump: the pump is connected to the motor through the elastic coupling, and the pump rotates clockwise from the direction of the prime mover.
Vertical Centrifugal Slurry Pump Material
Natural rubber can work in the range of pH 1~13 in the range of service temperature.
High chromium metals can only work in the range of pH 5 ~ 12;
Special metal materials can work in the range of pH 1 ~ 14.
Vertical Centrifugal Slurry Pump Application
Minerals processing and Tailing delivery
CIL (Carbon-In-Leaching) gold processing
Accident slurry return
Coal preparation
Sand and gravel discharging
Chemical processing
Effluent handing
Vertical Centrifugal Slurry Pump Specification
| Model | Matching power P(KW) |
Capacity Q(m³/h) |
Head H(m) |
Speed n(r/min) |
Eff.η (%) |
Impeller Dia. (mm) |
Max. particles (mm) |
Weight (kg) |
| 40VS-PV | 1.1-15 | 7.2-29 | 4-28.5 | 1000-2200 | 40 | 188 | 12 | 300 |
| 65VS-QV | 3-30 | 18-113 | 5-31.5 | 700-1500 | 60 | 280 | 15 | 500 |
| 100VS-RV | 5.5-75 | 40-289 | 5-36 | 500-1200 | 62 | 370 | 32 | 920 |
| 150VS-SV | 11-110 | 108-576 | 8.5-40 | 500-1000 | 52 | 450 | 45 | 1737 |
| 200VS-SV | 15-110 | 180-890 | 6.5-37 | 400-850 | 64 | 520 | 65 | 2800 |
| 250VS-TV | 18.5-200 | 261-1089 | 7-33.5 | 400-750 | 60 | 575 | 65 | 3700 |
| 300VS-TV | 22--200 | 288-1267 | 6-33 | 350-700 | 50 | 610 | 65 | 3940 |
Vertical Slurry Pump Application
Minerals processing and Tailing delivery
CIL (Carbon-In-Leaching) gold processing
Accident slurry return
Coal preparation
Sand and gravel discharging
Chemical processing
Effluent handing
