Submersible Axial Flow Pump Vertical High Flow Low Head Submersible Pumps

Submersible Axial Flow Pump Vertical High Flow Low Head Submersible Pumps

Submersible Axial Flow Pump

Axial Flow Pump Vertical

High Flow Low Head Submersible Pumps

Place of Origin:

China

Brand Name:

Huatao

Certification:

ISO 9001

Model Number:

HT-Submersible Axial Flow Pump

Contact Us

Request A Quote
Product Details
Name:
Submersible Axial Flow Pump
Head:
2~ 25m
Power:
4KW-450KW
Voltage:
380V、660V、6kV、10kV
Rotor Diameter:
300~1480mm
Usage:
Water,liquid
Material:
Cast Iron,stainless Steel
Flow:
954~1454m³/h
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 20000-150000 per set
Packaging Details
Wooden Box
Delivery Time
35~50 days
Payment Terms
L/C, T/T, Western Union
Supply Ability
20 sets per month
Product Description

Large Flow Low Head Vertical Clean Water Submersible Axial Flow Pump



Axial-flow pump description

An axial flow pump is a pump that uses the force generated by the rotating impeller blades to transport liquid in the axial direction. There are several types of vertical, horizontal, inclined and tube pumps. The special thrust bearing is adopted, with reasonable structural design, sufficient lubrication, good heat dissipation, long service life of the bearing, remote control and automatic control, saving time and labor for installation and maintenance, and saving costs. It is mainly suitable for low water head and high flow conditions, such as irrigation, drainage, dock drainage, water level regulation of channel locks, or as a large circulating water pump in power plants. High-head axial flow pumps (two-stage if necessary) for waterjet propulsion of shallow water vessels.

Axial-flow pump Specification

Product name  Submersible Axial Flow Pump
Material Cast Iron,stainless steel
Head 2~10m
Power 15~1400KW
Flow 700~1454m³/h
Usage Water liquld




Axial-flow pump Matters Needing Attention

During the trial operation of Axial-flow pump, the connecting parts shall be checked to ensure that there is no looseness at the connecting parts.

Electrical appliances and instruments of Axial-flow pump shall work normally; There should be no leakage in the pipelines of the oil, gas, and water systems; Check that the pressure and hydraulic pressure are normal.

Regularly check for floating objects near the water inlet to prevent blockage.

The temperature of rolling bearing of Axial-flow pump shall not exceed 75 ℃. The temperature of the oil in the gearbox should be normal.

Pay attention to the sound and vibration of the water pump at all times, and immediately stop the machine for inspection if any abnormalities are found.

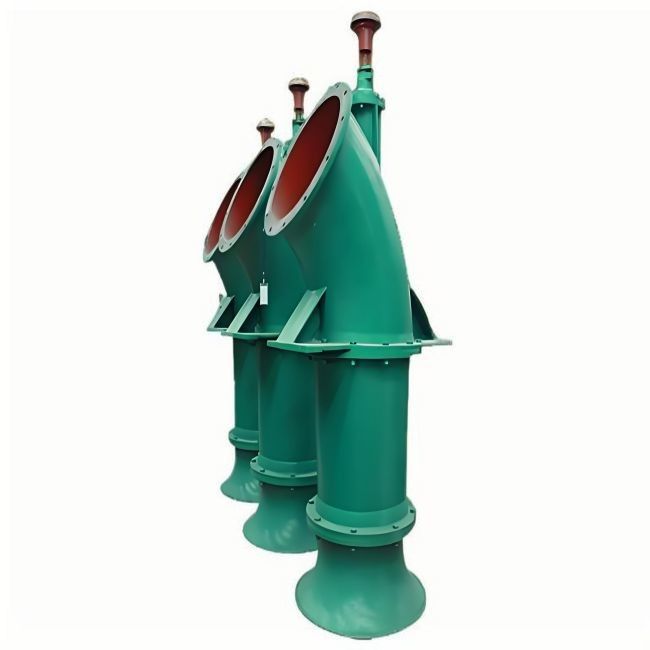

Submersible Axial Flow Pump Vertical High Flow Low Head Submersible Pumps 0

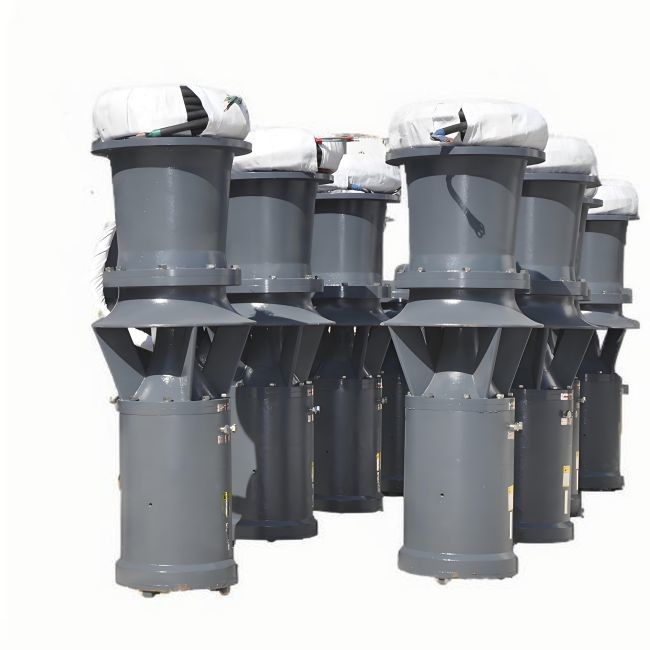

Submersible Axial Flow Pump Vertical High Flow Low Head Submersible Pumps 1
