Place of Origin:
China
Brand Name:
Huatao
Certification:
ISO9001
Model Number:
HT-Roots vacuum pump
Contact Us
End Suction Mechanical Seal Self-priming Water Ring Vacuum Pump

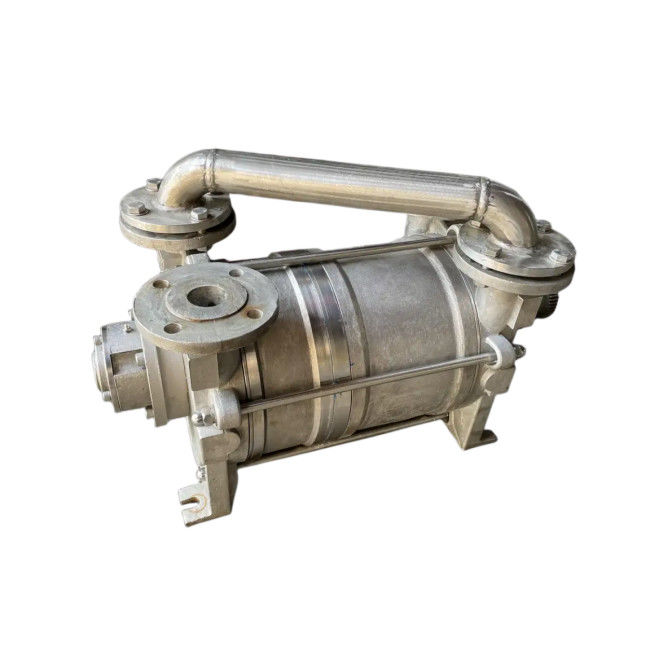

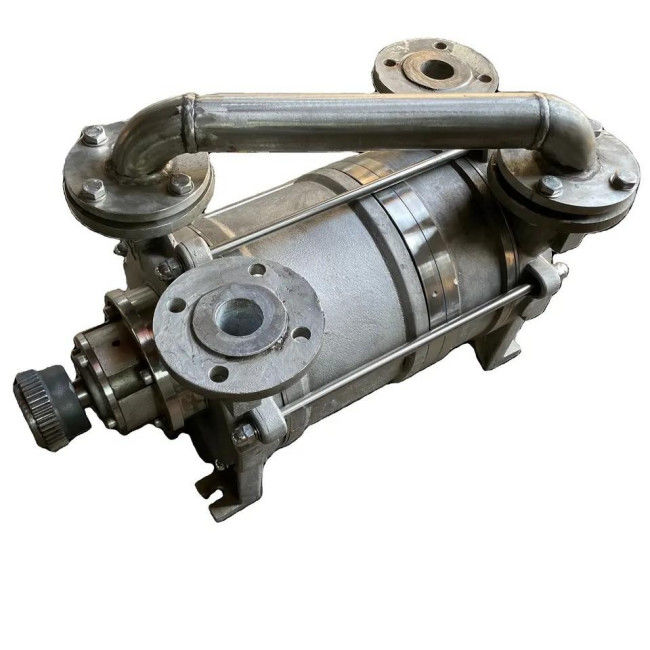

Water Ring Vacuum Pump Feature
This series is coaxial two-stage pump. The channel between the two stages consists of the middle plate and the connecting tube, the rotating part is composed of the shaft and two stages of impeller, the fixed part is the inlet and outlet pump covers, two pump bodies, and suction Disc and bearing brackets. The drive of the motor and pump section is coupled by a coupling and the pump and motor are mounted on a common base. The pump works in two stages and has a high ultimate vacuum. Split design,stable and reliable operation, mechanical seal, ensure clean working environment,low vibration,low noise,suitable for wide range of industrial areas.
Water Ring Vacuum Pump Specification
| Product name | Water Ring Vacuum Pump |
| Power Source | Electric |
| Material | Stainless steel |
| Pressure | 3300Pa |
| Warranty | 12 months |
| Usage | Automotive Industry, Drinking water treatment, |
Water Ring Vacuum Pump Application
It is mainly used to extract air and other gases that are somewhat corrosive, insoluble in water, and allow a small amount of solid particles. Widely used in vacuum evaporation, concentration, impregnation, drying and other industrial processes in the food, textile pharmaceutical, chemical and other industries.
Spare Parts
Enterpriser Strength
Exhibition And Customer Visting
Please ask for pump details and price by inquiry@huataogroup.com. For any questions will reply within 24 hours.
Send your inquiry directly to us
