HT Replaceable Grundfos End-Suction Close-Coupled Multi-Stage Pump; HT Alternative For Grundfos CME Pump

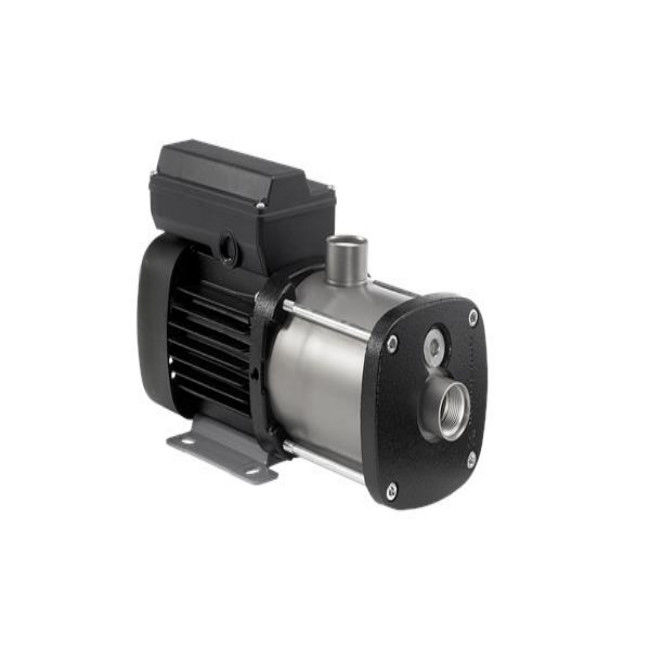

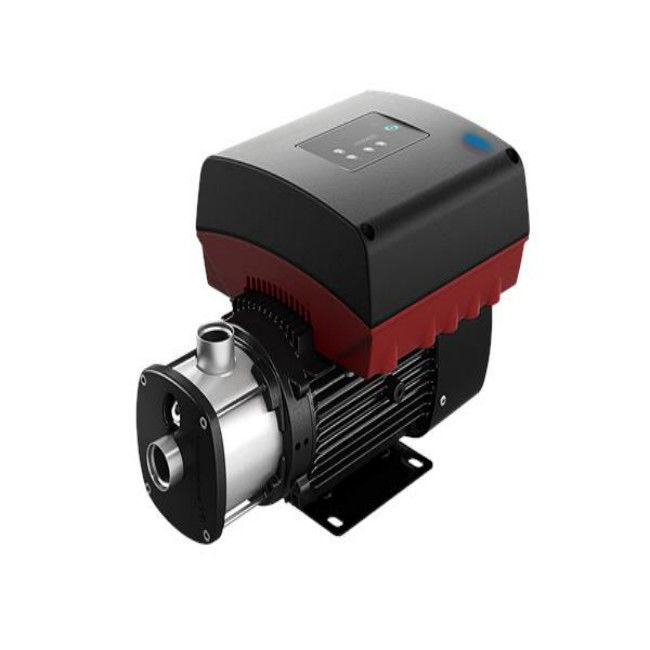

HT- End-Suction Close-Coupled Multi-Stage Pump

HT- End-Suction Close-Coupled Multi-Stage Pump Introduction

In an end-suction close-coupled multi-stage pump, the liquid runs directly into the impeller and the inlet and outlet form a 90-degree angle to each other. The pumps typically produce high pressure relative to flow, making them ideal multi-purpose pumps for both industry and water boosting in general.

Application

1. Industrial Use: These pumps are often used in industrial processes that require high pressure, such as cooling systems, boiler feed water, cleaning systems, and industrial liquid transfer.
2. Water Supply Systems: In municipal water supply and booster systems, these pumps can provide a steady flow of high-pressure water.
3. Agricultural Irrigation: Used in agricultural irrigation systems to ensure that water can be efficiently delivered to the fields.
4. Building Water Supply: In high-rise buildings and commercial buildings, used for water supply and booster systems.
5. Wastewater Treatment: In wastewater treatment plants, used to transport and treat wastewater.

Working Principle

1. Liquid enters the pump body: Liquid enters from the suction port of the pump and flows directly into the first impeller 1.
2. Impeller accelerates the liquid: The impeller rotates at high speed, using centrifugal force to throw the liquid from the center of the impeller to the outer edge of the impeller, increasing the kinetic energy and pressure of the liquid 1.
3. Guide vane conversion energy: The liquid passes through the guide vane, and part of the kinetic energy is converted into potential energy, and then enters the next stage of impeller 2.
4. Multi-stage boosting: The liquid passes through multiple impellers and guide vanes in sequence, and each stage of the impeller further increases the pressure of the liquid 2.
5. High-pressure output: Finally, the liquid is discharged from the discharge port of the pump under high pressure 2.

Specification

Production workshop

Exhibition And Customer Visting

Please ask for pump details and price by inquiry@huataogroup.com. For any questions will reply within 24 hours.
