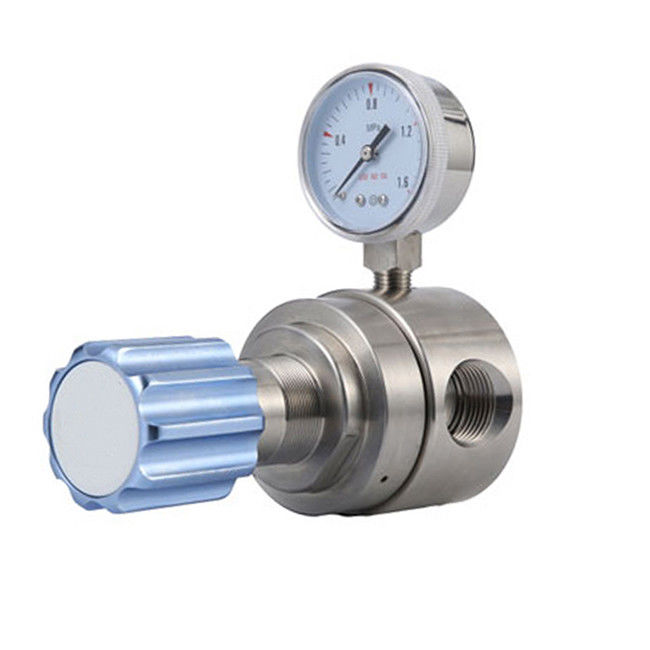

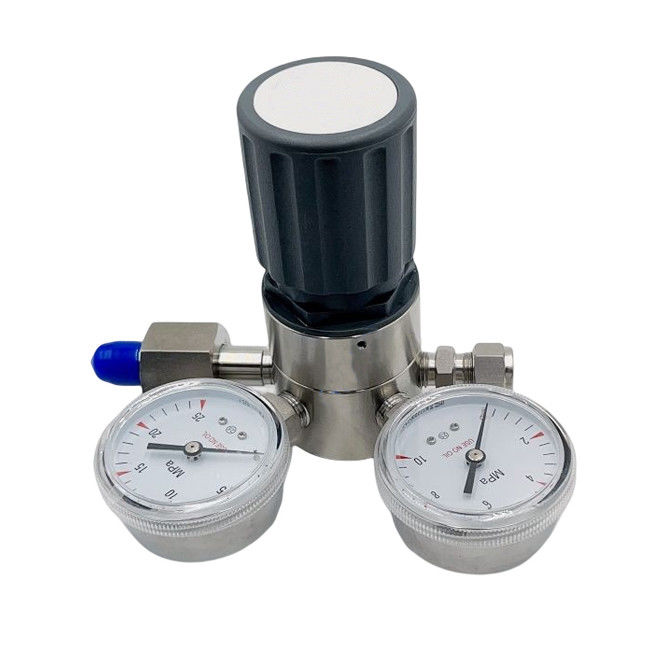

SS304 SS316 High Pressure Reducing Valve 500psi 1500psi 3000psi

Stainless Steel SS304 316 High Pressure Reducing Valve

High Pressure Reducing Valve Introduce

Stainless steel pressure-reducing valve adopts single-stage diaphragm structure, stainless steel diaphragm pressure transmission, stable output pressure, small installation space, suitable for pure water, ultrapure water, corrosive liquid, gas, natural gas, etc.
Can be panel mounted,
Scope of application: laboratories, petrochemical industry, testing equipment, etc.

The pressure-reducing valve is a valve that reduces the inlet pressure to a certain required outlet pressure through adjustment and relies on the energy of the medium itself to keep the outlet pressure automatically stable. From the point of view of fluid mechanics, the pressure-reducing valve is a throttling element whose local resistance can be changed, that is, by changing the throttling area, the flow velocity and the kinetic energy of the fluid are changed, resulting in different pressure losses, so as to achieve the purpose of decompression. Then rely on the adjustment of the control and regulation system to balance the fluctuation of the post-valve pressure with the spring force, so that the post-valve pressure remains constant within a certain error range.

High Pressure Reducing Valve Performance
(1) Pressure regulation range: It refers to the adjustable range of the output pressure P2 of the pressure reducing valve, and the specified accuracy is required to be achieved within this range. The pressure regulating range is mainly related to the stiffness of the pressure regulating spring.
(2) Pressure characteristics: It refers to the characteristics of output pressure fluctuations caused by input pressure fluctuations when the flow rate g is a constant value. The smaller the output pressure fluctuation, the better the characteristics of the pressure reducing valve. The output pressure must be lower than the input pressure—a fixed value basically does not change with the input pressure.
(3) Flow characteristics: It refers to the persistence of the input pressure-timing, and the output pressure changes with the change of the output flow g. When the flow rate g changes, the smaller the output pressure change, the better. Generally, the lower the output pressure, the smaller its fluctuation with the output flow.

High Pressure Reducing Valve Main Technical Specification
