Place of Origin:
China
Brand Name:
Huatao
Certification:
CE
Model Number:
Desulfurization Pump
Contact Us

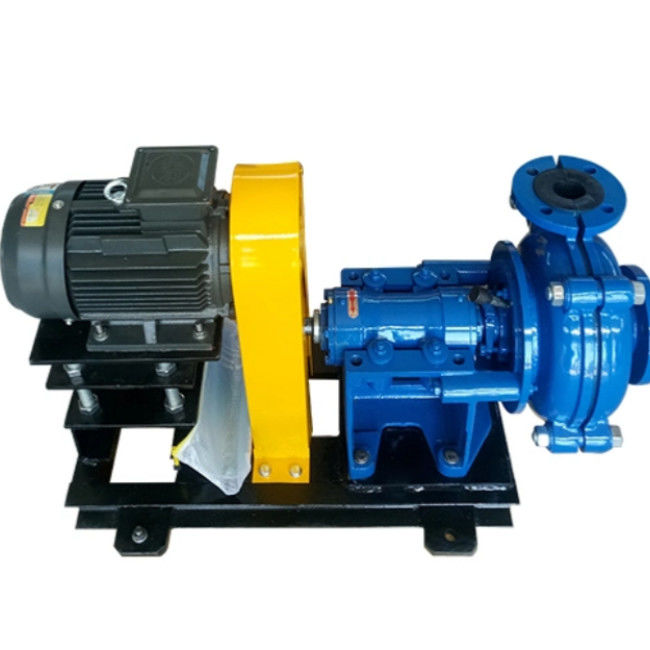

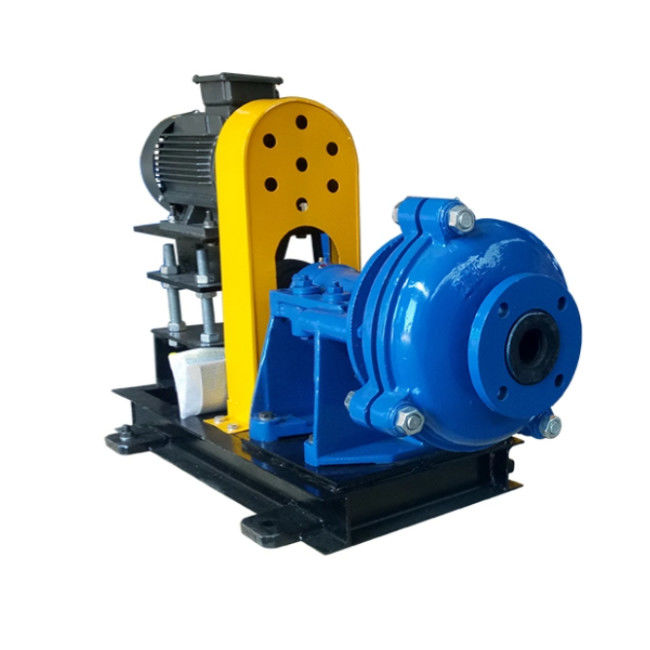

Sandstone Slurry Pump Large Abrasion Resistance Corrosion Desulfurization Gravel Pump
The slurry pump is the world's standard for the most difficult mill duties. A wide variety of impellers and shaft seals provide a perfect fit for a wide range of applications. The slurry pump provides excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.
1. Bearing assembly: large diameter shaft with short overhang contributes to long bearing life.
2. Liners: Easily replaceable liners are bolted, not glued to the casing for positive maintenance.
3. Casing: Casing halves of cast or ductile iron provide high operating pressure capabilities.
4. Impeller: Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
5. Throatbush: Wear is reduced and maintenance simplified by the use of tapered.
| Product Name | Sandstone Slurry Pump Large Abrasion Resistance Corrosion Desulfurization Gravel Pump |
| Max.Head | 12-56 M |
| Max.Capacity | 162-360 M3/H |
| Influent Type of Impeller | Single Suction Pump |
| Impeller | Closed |
| Material | A05, A07, A49, Rubber, Polyurethane |
| Voltage | 220V/380V/410V/460V/High Voltage |
| Specification | DN25mm-DN450mm |
| Metal Lined Pumps | Rubber Lined Pumps | ||
| Part Description | Material Specification | Part Description | Material Specification |
| Base | Cast Iron | Base | Cast Iron |
| Shaft | 4140 High Tensile Steel | Shaft | 4140 High Tensile Steel |
| Bearing Assembly | Timken(Cast Iron Body) | Bearing Assembly | Timken(Cast Iron Body) |
| Shaft Sleeve | 420 Stainless Steel | Shaft Sleeve | 420 Stainless Steel |
| pump Casing | Cast Iron | pump Casing | Cast Iron |
| Frame Plate Liner | 27% Chrome White Iron | Frame Plate Liner Insert | Rubber |
| Volute Liner | 27% Chrome White Iron | Cover Plate Liner | Rubber |
| Impeller | 27% Chrome White Iron | Impeller | Rubber Coated High Tensile Steel |
| Throat Bush | 27% Chrome White Iron | Throat Bush | Rubber |
| Joint Ring | Rubber | Cover Plate | Cast Iron |
| Cover Plate | Cast Iron | Stuffing Box | Cast Iron |
| Stuffing Box | Cast Iron | Expeller | 27% Chrome White Iron |
| Expeller | 27% Chrome White Iron | Expeller Ring | Natural Rubber |
| Expeller Ring | Natural Rubber | Bolts | Zinc Plated Steel |
| Bolts | Zinc Plated Steel | O-rings | Nitrile Rubber |
| O-rings | Nitrile Rubber | Seals | Rubber |
| Seals | Rubber | ||
We provide technical support and service for our Desulfurization Pump customers. Our team of professionals will help you select the right pump for your application and work with you to ensure that the pump is properly installed and operating as expected.
Our technical support team is available to help answer questions about the installation or operation of the pump, as well as to provide troubleshooting and repair advice. We offer on-site service and maintenance to help keep your pump running at peak efficiency, and can provide spare parts and accessories to meet your needs.
We also offer training and education services to ensure that our customers are knowledgeable about their pumps and understand how to use them correctly. Our team of experts can provide on-site courses and webinars to help keep your staff up-to-date with the latest technologies and practices.
We are dedicated to providing the highest quality service and support to ensure that our customers have the best possible experience with our Desulfurization Pump.
