380V 2BV Series Water Ring Vacuum Pump with Rotor Diameter 300-1480mm

380V 2BV Series Water Ring Vacuum Pump with Rotor Diameter 300-1480mm

2BV Series Water Ring Vacuum Pump

380V Water Ring Vacuum Pump

1480mm Water Ring Vacuum Pump

Place of Origin:

China

Brand Name:

Huatao

Certification:

ISO 9001

Model Number:

HT-2BV Series Water Ring Vacuum Pump

Contact Us

Request A Quote
Product Details
Name:
2BV Series Water Ring Vacuum Pump
Work Function:
Mainsuction Pump
Noise:
66 DB
Ultimate Vacuum:
Less Than 0.001 Mbar
Rotor Diameter:
300~1480mm
Voltage:
380V、660V、6kV
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 800-1000per set
Packaging Details
Wooden Box
Delivery Time
35~50 days
Payment Terms
L/C, T/T, Western Union
Supply Ability
200 sets per month
Product Description

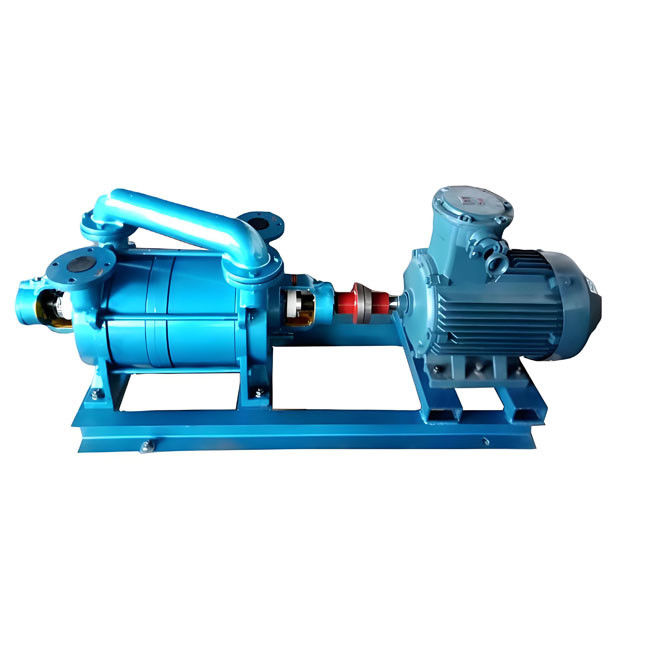

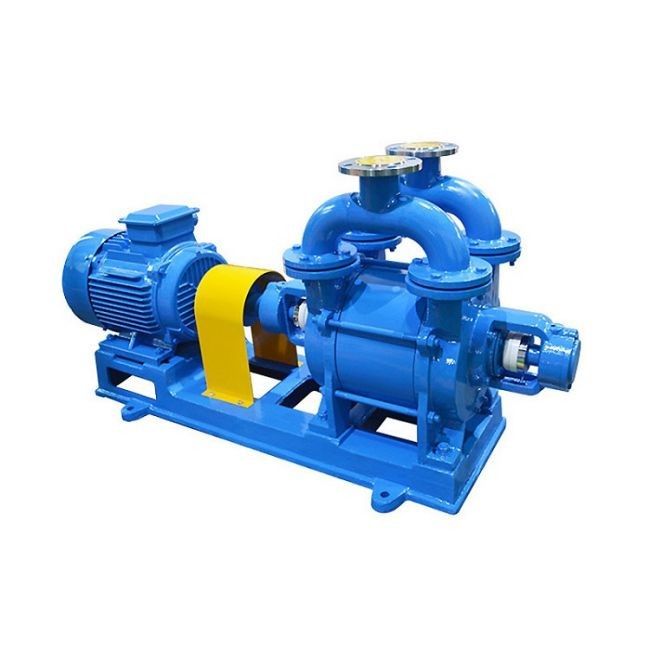

2BV Series Water Ring Vacuum Pump



2BV series water ring vacuum pumps and compressors are mainly used to pump gas and water vapor, especially suitable for pumping non-polluting gases and steam (please specify when ordering special gases). The suction pressure can reach 33mbar absolute pressure (97% vacuum). Spend). When the water ring vacuum pump works for a long time and the suction pressure is close to the ultimate vacuum (saturated vapor pressure of the working fluid), anti-cavitation pipes need to be connected to eliminate squealing and protect the pump body.
Our company has joined forces with Shandong University, China University of Petroleum and other units to continuously optimize products and launch the 2BV series water ring vacuum pump. With its excellent performance and many advantages, it has become a new generation of energy-saving products of our company and will fully replace SK and 2SK series water ring vacuum pumps and W, WY, WL and other reciprocating vacuum pumps of the same energy.



2BV Series Water Ring Vacuum Pump Parameters



Type Maximum air volume
m3/min
Pressure limit
Pa
power kW revolution rpm Motor explosion-proof grad Water consumption
L/min
noise dB(A) weight
kg
2BV2060-EX 0.45 3300 1.1 2880 d II BT4 2 62 39
2BV2061-EX 0.87 3300 1.5 2880 d II BT4 2 65 45
2BV2070-EX 1.33 3300 2.2 2880 d II BT4 2.5 66 66
2BV2071-EX 1.83 3300 3 2880 d II BT4 4.2 72 77
2BV6110 2.75 3300 4 1450 d II BT4 7 63 153
2BV6111 3.83 3300 5.5 1450 d II BT4 8.5 68 208
2BV6121 4.68 3300 7.5 1450 d II BT4 10 69 240
2BV6131 6.68 3300 11 1450 d II BT4 15 73 320
2BV6161 8.3 3300 15 970 d II BT4 20 74 446





2BV Series Water Ring Vacuum Pump Feature



No lubrication in the working chamber, therefore oil-free
Handles almost all gases and vapors
Handles entrained liquids
Easy to maintain, reliable operation
Low noise and virtually no vibration
Wide choice of materials, suitable for use almost anywhere
Cavitation protection standard
Integrated drain
