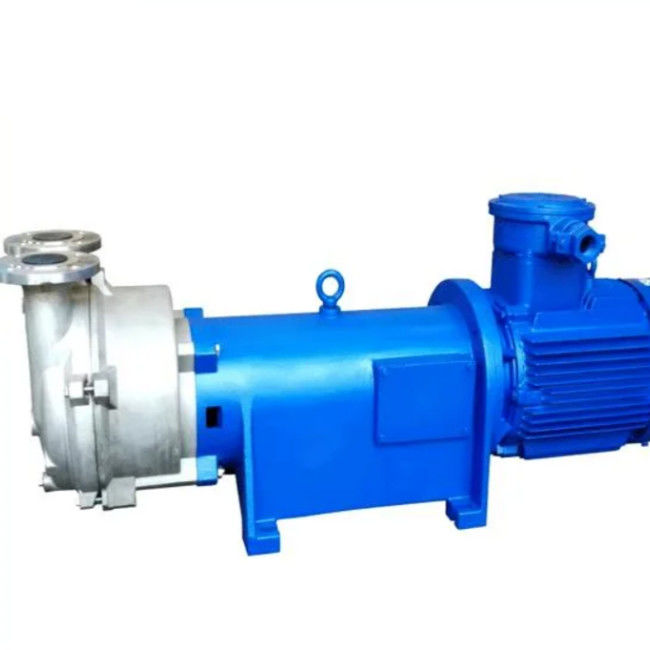

2BE Series Water Ring Vacuum Pump Product Description:
The 2BE series pump features a single-stage and single-function structure, which offers several advantages including simple structure, convenient maintenance, reliable operation, high efficiency, and energy-saving. These pumps are suitable for challenging working conditions such as large water discharge and load impact fluctuation.
Typically, these pumps are utilized for suctioning gas without solid particles, undissolved substances, and non-corrosive gases in order to establish vacuum and pressure within a closed container.
Moreover, the material of the pump's structure can be modified to enable suctioning corrosive gas or using corrosive liquid as the operating fluid.
2BE1 series water ring vacuum pump is a high mussel energy product developed by our company in combination with imported magnetic technology. This series of vacuum pump is a single machine single action structure, which has the advantages of simple structure, convenient maintenance, reliable operation and high aiming energy. It is usually used to suck air or other gases insoluble in water, free of solid particles and non corrosive, so as to form a certain vacuum in a closed container. Equipped with clear motor, it can suck flammable and explosive gas. After the pump tree material is corrosion-resistant material or wrist rot MTS, it can suck corrosive gas to a certain extent.
2BE1 series water ring vacuum pumps are widely used in petrochemical, light industry, chemical industry, pharmaceutical, papermaking, metallurgy, building materials, electrical appliances, food, coal washing, beneficiation, chemical fertilizer and other industries.
Type | revolution ( transmission way) r/min | Maximum shaft power kW |
motor power kW |
motor model |
Ultimate vacuumc Pa |
Maximum air valume m3/h |
Pump weight kg |
1100 (belt) | 7.2 | 11 | Y160M-4 | 300 | 428 | ||
1300 (belt) | 9.2 | 11 | Y160M-4 | 360 | 444 | ||
2BE1 151 | 1450 (direct connection) | 10.8 | 15 | Y160L-4 | 3300 | 405 | 469 |
1625 (belt) | 13.2 | 15 | Y160L-4 | 445 | 469 | ||
1750 (belt) | 14.8 | 18.5 | Y180M-4 | 470 | 503 | ||
1100 (belt) | 8.3 | 11 | Y160M-4 | 340 | 437 | ||
1300 (belt) | 10.5 | 15 | Y160L-4 | 415 | 481 | ||
2BE1 152 | 1450 (direct connection) | 12.5 | 15 | Y160L-4 | 3300 | 465 | 481 |
1625 (belt) | 15 | 18.5 | Y180M-4 | 510 | 515 | ||
1750 (belt) | 17.2 | 22 | Y180L-4 | 535 | 533 | ||
1100 (belt) | 10.6 | 15 | Y160L-4 | 445 | 480 | ||
1300 (belt) | 13.6 | 18.5 | Y180M-4 | 540 | 533 | ||
2BE1 153 | 1450 (direct connection) | 16.3 | 18.5 | Y180M-4 | 3300 | 600 | 533 |
1625 (belt) | 19.6 | 22 | Y180L-4 | 660 | 551 | ||
1750 (belt) | 22.3 | 30 | Y200L-4 | 700 | 601 | ||
970 (direct connection) | 17 | 22 | Y200L2-4 | 760 | 875 | ||
790 (belt) | 14 | 18.5 | Y180M-4 | 590 | 850 | ||
2BE1 202 | 880 (belt) | 16 | 18.5 | Y180M-4 | 3300 | 670 | 850 |
1100 (belt) | 22 | 30 | Y200L-4 | 850 | 940 | ||
1170 (belt) | 25 | 30 | Y200L-4 | 890 | 945 | ||
1300 (belt) | 30 | 37 | Y225S-4 | 950 | 995 | ||
970 (direct connection) | 27 | 37 | Y250M-6 | 1120 | 1065 | ||
790 (belt) | 20 | 30 | Y200L-4 | 880 | 995 | ||
2BE1 203 | 880 (belt) | 23 | 30 | Y200L-4 | 3300 | 1000 | 995 |
1100 (belt) | 33 | 45 | Y225M-4 | 1270 | 1080 | ||
1170 (belt) | 37 | 45 | Y225M-4 | 1320 | 1085 | ||
1300 (belt) | 45 | 55 | Y250M-4 | 1400 | 1170 | ||
740 (direct connection) | 38 | 45 | Y280M-8 | 1700 | 1693 | ||
558 (belt) | 26 | 30 | Y200L-4 | 1200 | 1460 | ||
2BE1 252 | 660 (belt) | 31.5 | 37 | Y225S-4 | 3300 | 1500 | 1515 |
832 (belt) | 49 | 55 | Y250M-4 | 1850 | 1645 | ||
885 (belt) | 54 | 75 | Y280S-4 | 2000 | 1805 | ||
938 (belt) | 60 | 75 | Y280S-4 | 2100 | 1805 | ||
740 (direct connection) | 54 | 75 | Y315M-8 | 2450 | 2215 | ||
560 (belt) | 37 | 45 | Y225M-4 | 1750 | 1695 | ||
660 (belt) | 45 | 55 | Y250M-4 | 2140 | 1785 | ||
2BE1 253 | 740 (belt) | 54 | 75 | Y280S-4 | 3300 | 2450 | 1945 |
792 (belt) | 60 | 75 | Y280S-4 | 2560 | 1945 | ||
833 (belt) | 68 | 90 | Y280M-4 | 2700 | 2055 | ||
885 (belt) | 77 | 90 | Y280M-4 | 2870 | 2060 | ||
938 (belt) | 86 | 110 | Y315S-4 | 3020 | 2295 |
Our company offers a range of services that cater to the following industries:
The Industrial Vacuum Pump product comes with reliable technical support and services to ensure smooth operation and maximum efficiency. Our team of experts is always available to provide assistance with installation, maintenance, troubleshooting, and repair of the vacuum pump. We also offer customized training programs for operators and maintenance personnel to enhance their skills and knowledge on the product. In addition, we provide regular updates on the product's performance, safety, and regulatory compliance to help customers stay informed and up-to-date.
