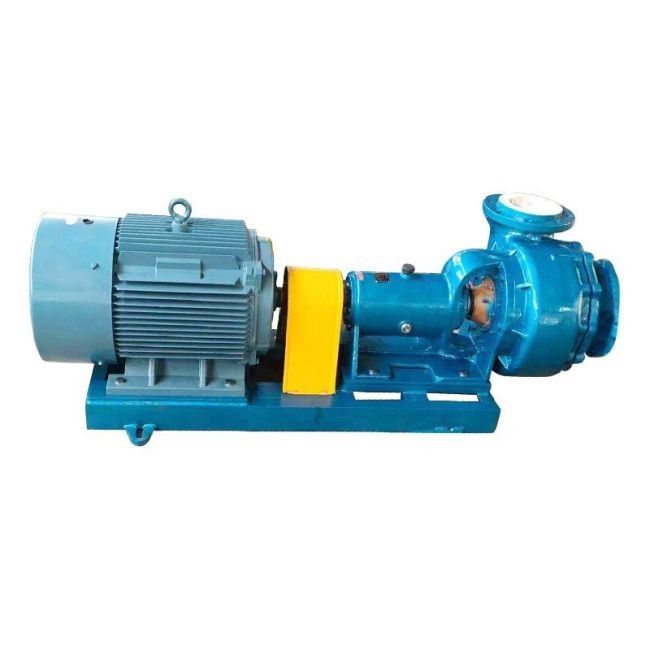

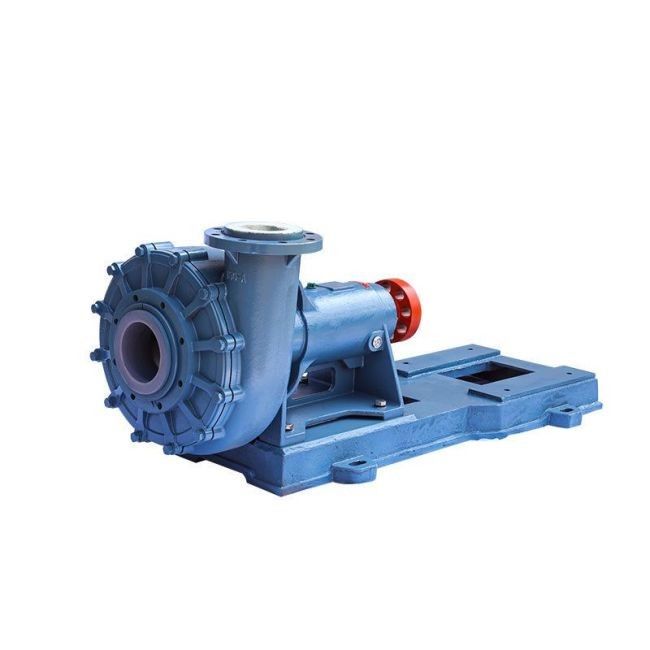

Similar Design Sulzer APP 44-200 And Paper Pump For Printing Sector

Similar Design Sulzer APP 44-200 And Paper Pump For Printing Sector

Similar Design Sulzer APP 44-200

Paper Pump For Printing Sector

Place of Origin:

China

Brand Name:

Huatao

Certification:

CE

Model Number:

Pulp pump

Contact Us

Request A Quote
Product Details
Voltage:
220V/380V/400V
Type:
Horizontal, Single-stage, Single-suction, Cantilever Double-casing Centrifugal
Speed:
1450-2900rpm
Service Life:
More Than 20 Years
Head:
Up To 160m
Application:
Papermaking, Sugar Industry, Urban Sewage, Other Media Transportation Fields
Product Name:
Pulp Pump
Material:
Stainless Steel, Cast Iron
Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD 750-USD5000
Packaging Details
Standard export wooden box
Delivery Time
7-15 Work Days
Payment Terms
TT L/C Western Union
Supply Ability
100 Sets/ month
Product Description

Product Description:

The pulp pump relies on the high-speed rotation of the impeller to generate centrifugal force. When the impeller rotates at high speed in the pump body, a low-pressure area is formed in the center of the pump chamber, and the pulp is sucked into the pump chamber from the pump inlet under the action of external pressure. The pulp entering the pump chamber is pushed by the impeller blades and moves in a high-speed circular motion with the impeller. Under the action of centrifugal force, the pulp is thrown to the volute flow channel of the pump body and gradually flows to the pump outlet along the volute flow channel, thereby realizing the process of conveying the pulp from the low-pressure area to the high-pressure area, and achieving the purpose of conveying the pulp from one location to another, such as from the pulp storage tank to the headbox of the papermaking machine.



Features:


The pulp pump can provide a certain range of flow rate and head to meet the needs of different papermaking process links. The flow rate range generally ranges from a few cubic meters per hour to thousands of cubic meters per hour, and the head is usually between a dozen meters and hundreds of meters. For example, in the pulp mixing process of a papermaking workshop, a pulp pump with a large flow rate but relatively low head may be needed to quickly mix and transport the pulp; when transporting the pulp to the high-rise paper machine headbox, a pulp pump with a higher head is required to overcome gravity and pipeline resistance.



Since pulp contains a large amount of solid particles such as fibers and fillers, the flow parts of the pump will be severely worn during the transportation process. Therefore, the impeller, pump body, bushing and other flow parts of the pulp pump are usually made of wear-resistant materials. Commonly used wear-resistant materials include high-chromium cast iron and stainless steel. High-chromium cast iron has the characteristics of high hardness and good wear resistance. It can effectively resist the erosion and wear of solid particles in the pulp and extend the service life of the pump. In some large paper mills, after a long period of operation, the wear of the flow parts of the pulp pump is still within an acceptable range, thanks to the high-quality wear-resistant materials and reasonable structural design.



Technical Parameters:

Product Name Pulp Pump
Type Horizontal, Single-stage, Single-suction, Cantilever Double-casing Centrifugal
Power 2.2-280KW
Speed 1450-2900rpm
Head Up To 160m
Temperature Up To 260℃
Medium Pulp, Syrup Starch, Chemical Slurry, Industrial Wastewater
Application Papermaking, Sugar Industry, Urban Sewage, Other Media Transportation Fields
Service Life More Than 20 Years
OEM Support Yes

Applications:

  • Flue gas desulfurization systems in power plants: Huatao Pulp Pump can be used in flue gas desulfurization systems in power plants to remove sulfur dioxide from the flue gas. The pump can handle desulfurization slurry and is ideal for this application.
  • Chemical plants: The Huatao Pulp Pump can be used in chemical plants for various applications, including transferring chemicals and handling wastewater.
  • Pulp and paper mills: Huatao Pulp Pump is suitable for transferring pulp in pulp and paper mills. The pump can handle various pulp consistencies and is ideal for this application.
  • Mining industry: The Huatao Pulp Pump is suitable for transferring slurries in the mining industry. The pump can handle abrasive and viscous slurries and is ideal for this application.
  • Wastewater treatment plants: Huatao Pulp Pump can be used in wastewater treatment plants for various applications, including transferring wastewater and handling sludge.

In conclusion, Huatao Pulp Pump is a reliable and efficient centrifugal pump for desulfurization that is suitable for various industries. The pump can handle various types of fluids and is ideal for applications that require handling desulfurization slurry. Its long service life and OEM support make it a valuable investment for any business.



Support and Services:

Our Pulp Pump product comes with top-notch technical support and services to ensure its optimal performance and longevity. Our team of experienced technicians is available to assist with any technical issues or questions that may arise during installation or operation of the pump.

We also offer comprehensive maintenance and repair services to keep your Pulp Pump running smoothly and efficiently. Our team can provide routine maintenance, inspections, and repairs, as well as emergency services in the event of a breakdown or malfunction.

In addition, we offer training and education services to help your team maximize the potential of the Pulp Pump and ensure safe and effective operation. We can provide on-site training, as well as online resources and instructional materials.

With our commitment to customer satisfaction and quality service, you can trust that your Pulp Pump will be in good hands with us.
