Place of Origin:
China
Brand Name:
HUATAO
Certification:
ISO9001
Model Number:
HT- Self-priming sewage pump
Contact Us

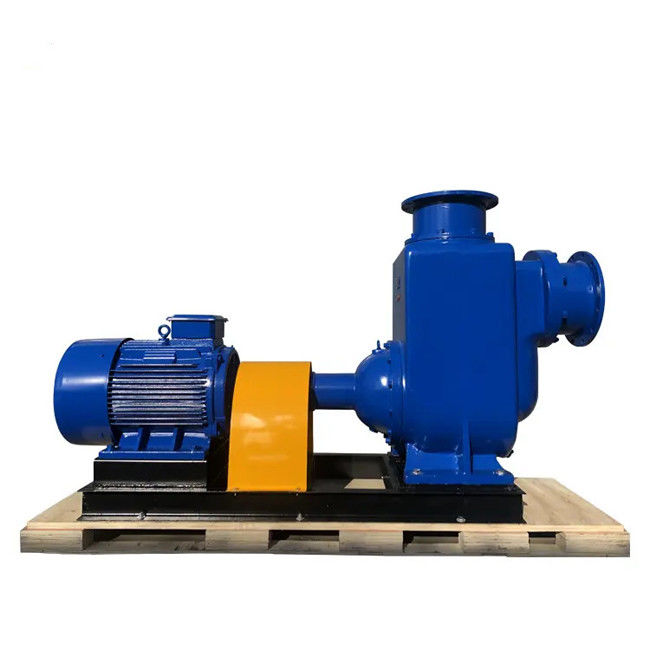

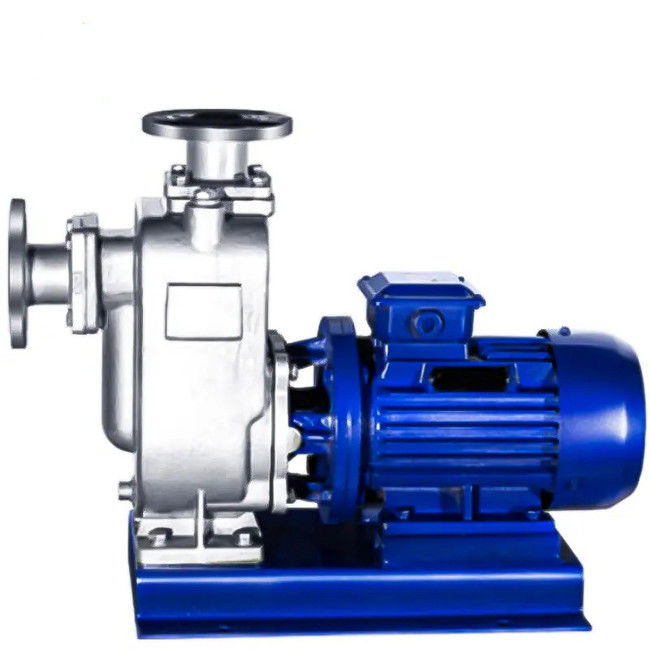

Stainless Steel Single Stage Suction Sewage Centrifugal Horizontal Pressure Water Pump
Self-priming sewage pump introduction
Horizontal single-stage end-suction centrifugal pump with application of transferring clean water and the liquid with similar physical and chemical characters as water but without solid particle. and widely used in water supply and drainage for factory, mine, city and also fire fighting and field irrigation system. They hydaulic performance can be adjusted by impeller cutting for different requests. Normal rotation speed is 1450rpm & 2900rpm. If pumps need to be operated on maximun rotation speed 3550rpm(60Hz power supply or connected with gasoline or diesel engine), technical support on impeller diameter change is available.
Feautres:
1. Simple Structure and compact size
2. Reliable performance
3. light weighted
4. excellent anti-cavitation
5. Low power consuption
6. Convenient maintenance
Self-priming sewage pump advantages
Strong sewage discharge capacity: the special anti-clogging design of the impeller ensures that the pump is efficient and non-clogging.
High efficiency and energy saving: using excellent hydraulic model, the efficiency is 3-5% higher than that of ordinary self-priming pumps.
Good self-priming performance: the self-priming height is 1 meter higher than that of ordinary self-priming pumps, and the self-priming time is shorter.
Scope of application
It can be widely used in municipal sewage projects, light industry, paper making, textile, food, chemical industry, electric industry, petroleum, mining and river pond breeding and other industries. It is currently the most ideal impurity pump for pumping media such as solid particles, fibers, slurry and mixed suspensions in China.
Product parameter
| Model |
Capacity |
Head |
Power |
Weight |
Speed |
Diameter |
||
| Import | Export | |||||||
| 1 | 25ZW8-15 | 8 | 15 | 1.5 | 80 | 2900 | 25 | 25 |
| 2 | 32ZW9-30 | 9 | 30 | 3 | 93 | 2900 | 32 | 25 |
| 3 | 32ZW10-20 | 10 | 20 | 2.2 | 80 | 2900 | 32 | 25 |
| 4 | 40ZW20-15 | 20 | 15 | 2.2 | 80 | 2900 | 40 | 40 |
| 5 | 40ZW15-30 | 15 | 30 | 3 | 93 | 2900 | 40 | 32 |
| 6 | 50ZW10-20 | 10 | 20 | 2.2 | 80 | 2900 | 50 | 40 |
| 7 | 50ZW20-15 | 20 | 15 | 2.2 | 80 | 2900 | 50 | 40 |
| 8 | 50ZW18-22 | 18 | 22 | 3 | 93 | 2900 | 50 | 40 |
| 9 | 50ZW15-30 | 15 | 30 | 3 | 93 | 2900 | 50 | 40 |
| 10 | 50ZW20-40 | 20 | 40 | 7.5 | 135 | 2900 | 50 | 40 |
| 11 | 50ZW20-50 | 20 | 50 | 11 | 178 | 2900 | 50 | 40 |
| 12 | 65ZW30-18 | 30 | 18 | 4 | 106 | 2900 | 65 | 50 |
| 13 | 65ZW30-18 | 30 | 18 | 4 | 179 | 1450 | 65 | 50 |
| 14 | 65ZW20-30 | 20 | 30 | 5.5 | 123 | 2900 | 65 | 50 |
| 15 | 65ZW25-40 | 25 | 40 | 7.5 | 142 | 2900 | 65 | 50 |
| 16 | 65ZW25-50 | 25 | 50 | 11 | 180 | 2900 | 65 | 50 |
| 17 | 65ZW40-25 | 40 | 25 | 7.5 | 125 | 2900 | 65 | 50 |
| 18 | 80ZW40-16 | 40 | 16 | 4 | 95 | 2900 | 80 | 65 |
| 19 | 80ZW40-16 | 40 | 16 | 4 | 170 | 1450 | 80 | 65 |
| 20 | 80ZW50-15 | 50 | 16 | 5.5 | 128 | 2900 | 80 | 65 |
| 21 | 80ZW25-40 | 25 | 40 | 7.5 | 145 | 2900 | 80 | 65 |
| 22 | 80ZW65-25 | 65 | 25 | 7.5 | 128 | 2900 | 80 | 65 |
| 23 | 80ZW80-35 | 80 | 35 | 15 | 185 | 2900 | 80 | 65 |
| 24 | 80ZW40-50 | 40 | 50 | 18.5 | 260 | 2900 | 80 | 65 |
| 25 | 80ZW50-60 | 50 | 60 | 22 | 270 | 2900 | 80 | 65 |
| 26 | 100ZW80-10 | 80 | 10 | 5.5 | 210 | 1450 | 100 | 80 |
| 27 | 100ZW80-20 | 80 | 20 | 7.5 | 246 | 1450 | 100 | 80 |
| 28 | 100ZW100-15 | 100 | 15 | 7.5 | 246 | 1450 | 100 | 80 |
| 29 | 100ZW100-20 | 100 | 20 | 11 | 260 | 2900 | 100 | 80 |
| 30 | 100ZW100-20 | 100 | 20 | 11 | 330 | 1450 | 100 | 80 |
| 31 | 100ZW100-30 | 100 | 30 | 22 | 306 | 2900 | 100 | 80 |
| 32 | 100ZW80-45 | 80 | 45 | 30 | 460 | 2900 | 100 | 80 |
| 33 | 100ZW80-60 | 80 | 60 | 37 | 480 | 2900 | 100 | 80 |
| 34 | 100ZW80-80 | 80 | 80 | 45 | 490 | 2900 | 100 | 80 |
| 35 | 125ZW120-20 | 120 | 20 | 15 | 352 | 1450 | 125 | 125 |
| 36 | 150ZW180-14 | 200 | 15 | 15 | 350 | 1450 | 150 | 150 |
| 37 | 150ZW180-20 | 180 | 20 | 18.5 | 380 | 1450 | 150 | 125 |
| 38 | 150ZW180-30 | 180 | 30 | 30 | 569 | 1450 | 150 | 150 |
| 39 | 150ZW180-35 | 180 | 35 | 37 | 600 | 1450 | 150 | 150 |
| 40 | 150ZW180-38 | 180 | 38 | 45 | 640 | 1450 | 150 | 150 |
| 41 | 150ZW180-45 | 180 | 45 | 55 | 700 | 1450 | 150 | 150 |
| 42 | 200ZW280-14 | 280 | 14 | 22 | 585 | 1450 | 200 | 150 |
| 43 | 200ZW280-20 | 280 | 20 | 37 | 744 | 1450 | 200 | 150 |
| 44 | 200ZW280-25 | 280 | 25 | 45 | 830 | 1450 | 200 | 150 |
| 45 | 200ZW280-28 | 280 | 28 | 55 | 847 | 1450 | 200 | 150 |
| 46 | 250ZW420-14 | 420 | 14 | 45 | 834 | 1450 | 250 | 200 |
| 47 | 250ZW420-20 | 420 | 20 | 55 | 939 | 1450 | 250 | 200 |
| 48 | 300ZW800-14 | 800 | 14 | 55 | 1050 | 1450 | 300 | 250 |
| 49 | 300ZW800-20 | 800 | 20 | 75 | 1200 | 1450 | 300 |
250 |
