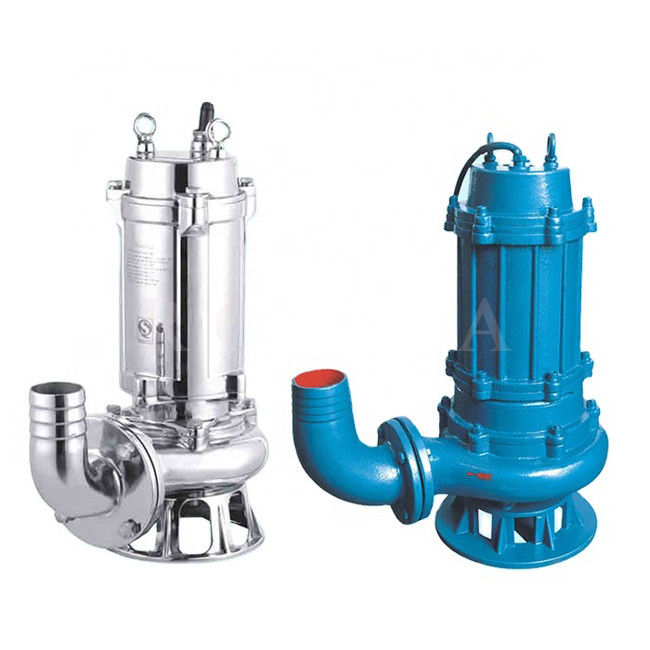

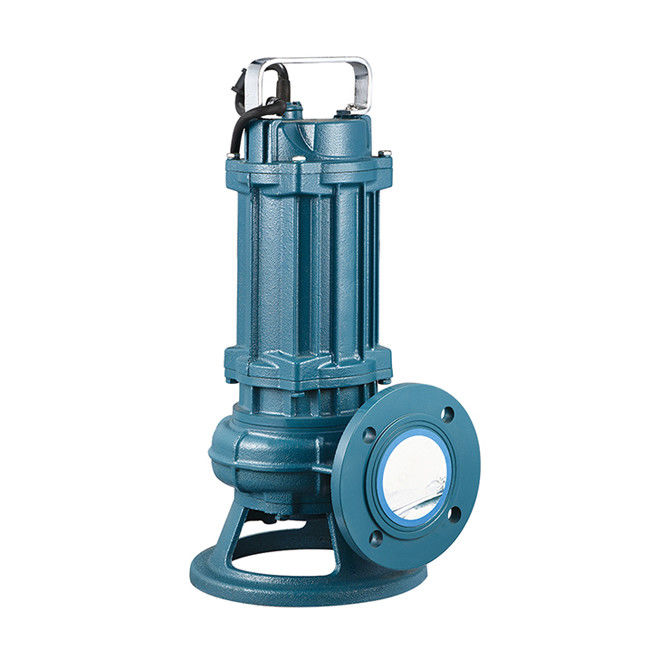

Cast Iron Non Clog Submersible Sewage Pump 1480r/Min For Waste Water

Non-Clog Waste Water Submersible Sewage Pump

Submersible sewage pump Introduction

Submersible sewage pump is an environmental protection product developed and perfected by means of detection. It uses an automatic stirring device on the basis of ordinary sewage pumps. The device rotates with the motor shaft to generate a strong stirring force. Stir the sediment in the sewage tank into suspended matter, suck it into the pump and discharge it, which improves the anti-blocking and sewage discharge capacity of the pump, completes drainage, cleaning, and desilting at one time, saves operating costs, and discharges solid particles and long-term It has unique features in terms of fiber litter and reduction of sedimentation in sump pits.

Scope of application

1. It can pump clean water, sewage with particles and corrosive media.

2. It is suitable for the drainage system of urban sewage treatment plants, municipal engineering, construction sites, etc.

3. Applicable to chemical industry, petroleum, pharmaceutical, paper industry, etc.

4. Suitable for cement plants, steel plants, coal processing industries, etc.

5. The water supply device of the waterworks.

6. Farm sewage discharge and rural farmland irrigation.

Submersible sewage advantages

The whole series of motors are of H-class insulation,temperature resistance reaching 180ºC,protection level is IP68, low energy consumption,low temperature rise,and high stability,compared with ordinary motors, increase heat resistance by 60 degrees celsius, extend the life, and the wiring chamber is sealed and separated from the stator and rotor of the motor, which brings double insurance.The motor bearing adopts the auxiliary oil tank structure, which increase the bearing service life.

The motor has a number of built-in warning sensors,including the leakage in the wiring chamber,,the motor cavity and the oil chamber, and the temperature rise of the bearding and the motor coil. The motor is equipped with water leakage monitoring,and the oil chamber is equipped with oil mixed water probes.There is comprehensive monitoring of motor operating conditions.

The products adopt three-dimensional flow theory design, CFD calculation simulation,non-blocking,non-overload design, and are of high efficiency, wide efficient range,low energy consumption, and adopt double-flow channel non-blocking impeller.The passage of the pump body is wide, so the solids are easy to pass, and the fibers are not easy o entangle. The impeller is strictly balanced to minimize vibration and maximize the life of bearings and mechanical seals.

The cable outlet adopts special structure,which eliminates water leakage, electricity leakage,short circuit,and stator coil burnout caused by accidental factors such as artificial pulling,broken cable jacket, and cable aging,which effectively reduces the probability of failure caused by water in the upper part of the whole machine

The motor uses four sides to contact with water or air,which greatly improves its heat dissipation capacity. The motor bearding housing is in direct contact with water or air,which enhances the heat dissipation capacity of the bearing and greatly increases the service life of the bearing.According to the water level,cooling-jacket cooling system is provided to ensure that the motor can continue to run when it breaks the surface of water

Submersible sewage pump specification:

Huatao Pumps Application

Huatao Pumps Package, Shipment, Workshop

Exhibition And Customer Visting

Please ask for pump details and price by inquiry@huataogroup.com. For any questions will reply within 24 hours.
