Place of Origin:
China
Brand Name:
HUATAO
Certification:
ISO9001
Model Number:
HT-Stop Valve
Contact Us

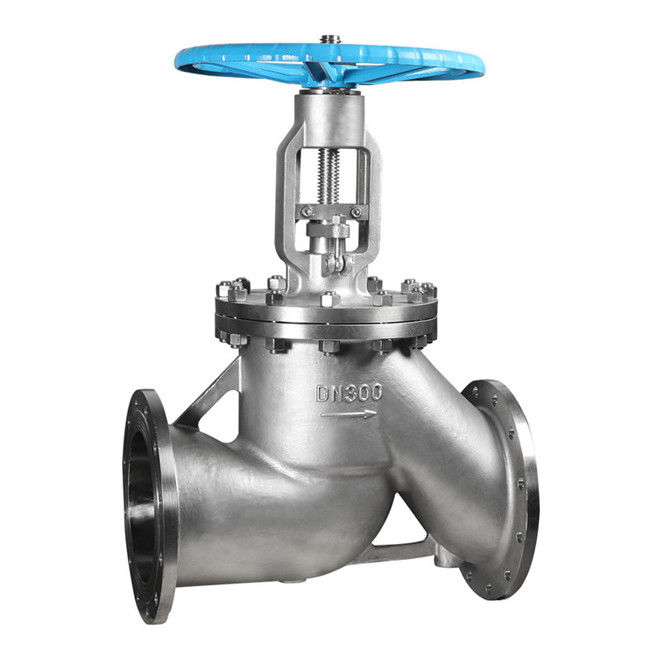

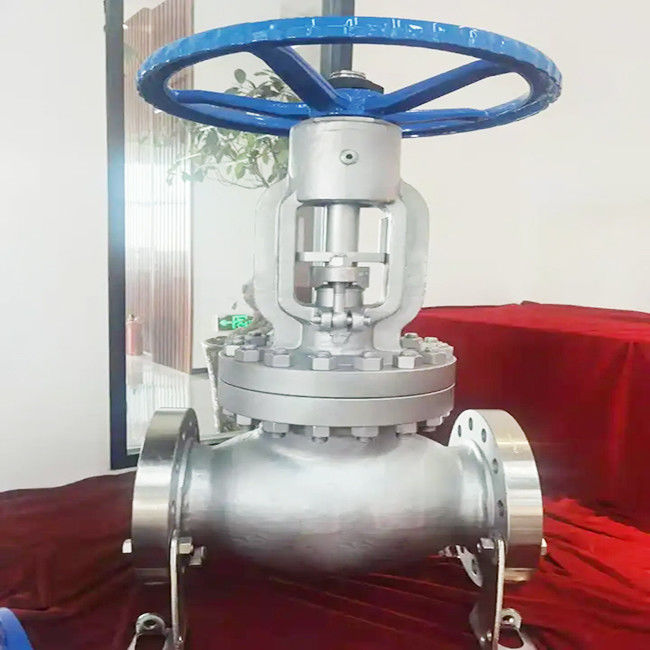

Small Working Stroke Insulated Stop Valve For Chemical Industry
Insulated Stop Valve Description

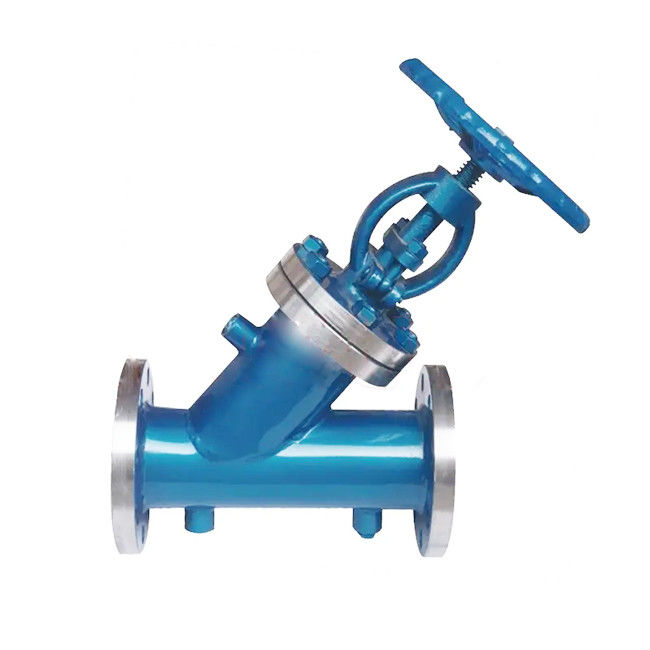

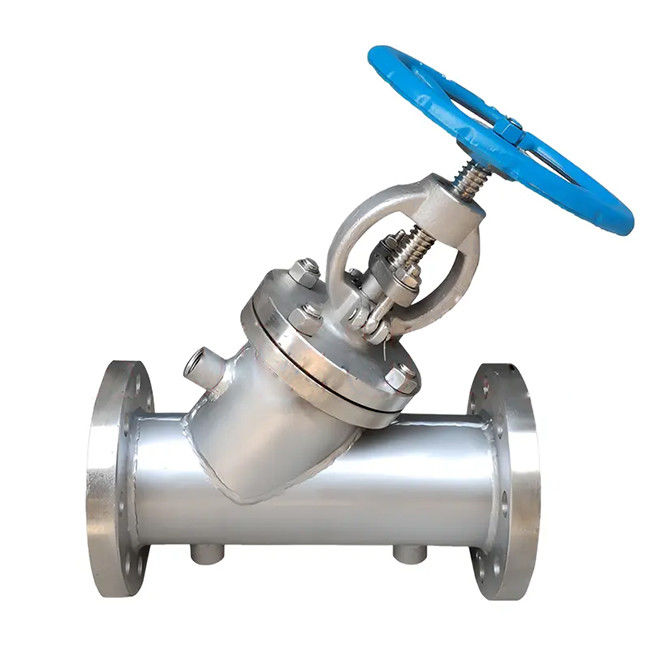

Insulated stop valve, mainly used in petroleum, chemical, metallurgical, pharmaceutical and other types of systems to transport high viscosity media will solidify at room temperature, DC jacketed insulation stop valve insulation jacket welded to the valve between the two flanges, the valve's side, the bottom of the two connections set up with the insulation jacket port. DC insulation disconnecting valve is especially suitable for chemical industry, fertilizer industry pipeline, the jacket connotation into the steam can prevent the media crystallization.
Insulated Stop Valve Advantages
1, Simple structure, manufacturing and maintenance is relatively convenient;.
2, Small working stroke, short opening and closing time.
3, Good sealing, small friction between sealing surfaces, long life.
4, Suitable for larger viscosity, easy to coking medium.
Insulated Stop Valve Specification
|
Nominal Preasure PN(MPa) |
Test Pressure | Applicable temperature | Applicable medium |
Insulation sleeve pressure (MPa) |
|
| clamshell | seal up | ||||
| 2.5 | 3.75 | 2.75 | ≤200 | nitrate | ≤1.0 |
| 4.0 | 6.0 | 4.4 | |||
| 6.4 | 9.0 | 6.6 | |||
| 2.5 | 3.75 | 2.75 | nitrate | ||
| 4.0 | 3.0 | 4.4 | |||
| 6.4 | 9.0 | 6.6 | |||
