Rexroth Replaces A2FO Series Axial Piston Model A2FO90/61R-PAB05 Plunger Pump Assembly

Rexroth Replaces A2FO Series Axial Piston Model A2FO90/61R-PAB05 Plunger Pump Assembly

A2FO rexroth

A2FO Rexroth Axial Piston Pump

Plunger Rexroth Axial Piston Pump

Place of Origin:

China

Brand Name:

HUATAO

Certification:

ISO9001

Model Number:

HT-PLH

Contact Us

Request A Quote
Product Details
Type:
A2fo Series
Direction Of Rotation:
Clockwise
Mounting Flange:
4 Hole
Main Materials:
Cast Iron, Copper, Steel, Oil Seal, Etc.
Rotary Group, Hydraulic Part:
Standard
Drive Mode:
Electric Motor
Working Pressure Range:
350bar~400bar
Control Mode:
Pressure Flow Control
Material:
Cast Iron
Weight [kg:
1
Payment & Shipping Terms
Minimum Order Quantity
1
Price
1000
Packaging Details
Wooden Box
Delivery Time
5-10 days
Payment Terms
EXW/FOB/CFR/CIF/DDP
Supply Ability
100 sets/month
Product Description

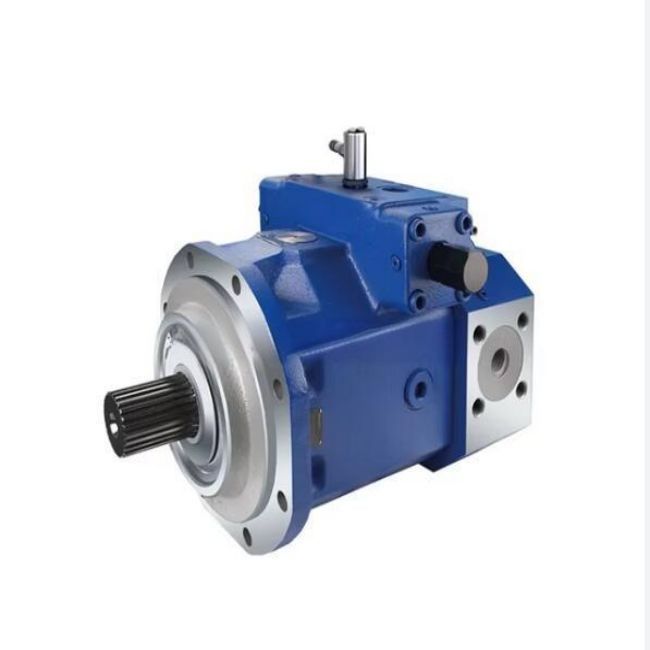

Rexroth Replaces A2FO Series Axial Piston Model A2FO90/61R-PAB05 Plunger Pump Assembly



Product Description



It features an oblique shaft design, which provides high transmission efficiency and effectively reduces energy loss. This design allows for a more compact and efficient power transfer within the pump. The pump is equipped with an axially tapered piston rotor group, which is specifically designed for open circuit hydrostatic transmission. This design enables the pump to handle high pressures and provides smooth and reliable operation. The displacement of the A2FO series pumps typically ranges from 5 to 130 cm³/rev, with specific models available in various sizes such as A2FO5, A2FO10, A2FO12, and so on, up to A2FO1000. This wide range of displacements allows the pump to be customized to meet the specific flow requirements of different applications.



Piston pump advantage



  1. High Efficiency: The oblique shaft design and precise manufacturing processes result in high overall efficiency, reducing energy consumption and operating costs.
  2. Good Adjustment Performance: With a large adjustment range, the A2FO pump can adapt to different working conditions and hydraulic transmission requirements, ensuring stable operation of the equipment.
  3. High Reliability: Manufactured using high-quality materials and advanced production techniques, the pump offers high reliability and durability, minimizing downtime and maintenance requirements.
  4. Easy Maintenance: The design of the A2FO pump takes into account maintenance needs, making it easy to perform routine maintenance tasks such as inspection, cleaning, and replacement of wear parts, thereby reducing repair costs and equipment downtime.



Technical Parameters:



Type



 Displacement Vg(cm3/rev)



  Pressure(bar)



 Max pressure(bar)



 Speed n

A2FO5 5 315 350 3150
A2FO10 10.3 400 450 3150
A2FO12 12 400 450 3150
A2FO16 16 400 450 3150
A2FO23 22.9 400 450 2500
A2FO28 28.1 400 450 2500
A2FO32 32 400 450 2500
A2FO45 45.6 400 450 2240
A2FO56 56.1 400 450 2000
A2FO63 63 400 450 2000
A2FO80 80.4 400 450 1800
A2FO90 90 400 450 1800



Application areas



The A2FO series axial piston plunger pump is widely used in various industries and applications, including:

  • Engineering Machinery: Such as excavators, trenching machines, tunnel boring machines, shield tunneling machines, bulldozers, scrapers, loaders, graders, cranes, rollers, compactors, tamping machines, pile drivers, and hydraulic crushers.
  • Industrial Equipment: Including concrete mixers, concrete mixing plants, concrete conveying pumps, leveling machines, road milling machines, ballast cleaning machines, rock drills, bridge erecting machines, metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, shearing machines, soil transportation machinery, compaction machinery, concrete machinery, metal cutting machine tools, forging machinery, casting machinery, and woodworking machinery.
  • Other Applications: It is also used in hydraulic equipment in cement plants, power plant slag removal machines, ships, oil fields, etc.
