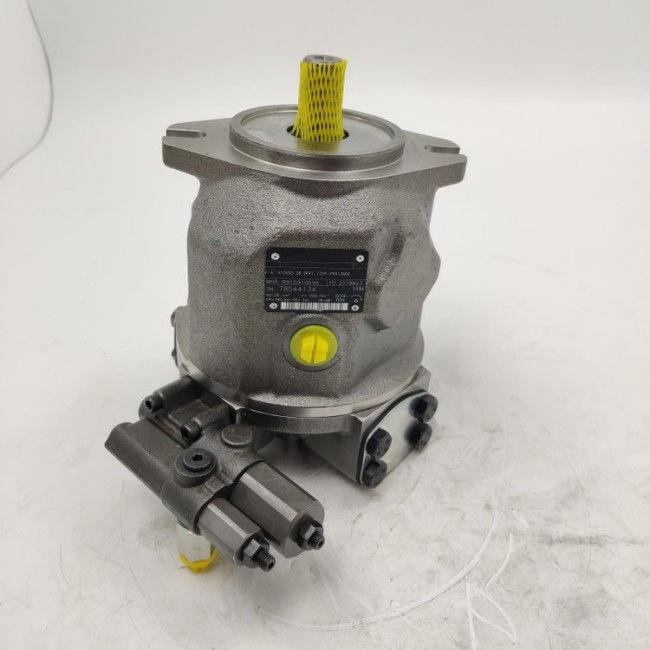

A10VSO100 slant plate variable displacement piston pump high pressure Hydraulic Pump
Product Description
Axial piston swash plate structure: This structure makes the reciprocating direction of the piston parallel to the central axis of the cylinder body, and the piston and the piston hole can achieve high precision matching, thus ensuring a high volumetric efficiency.
Through shaft structure: The through shaft design enables it to be used in multi-circuit systems, greatly improving the application range and working efficiency of the pump. Multiple plungers in parallel: Generally, there are 7, 9, or 11 plungers arranged in parallel. The single-row structure reduces the flow pulsation of the pump and makes the operation more stable. High power/weight ratio: This series of pumps has a relatively light weight per unit power and a compact structure. It can provide a large power output in a small space, which is conducive to the miniaturization and lightweight design of the equipment, and improves the overall performance and economy of the equipment.
Short control time: With a short control response time, it can quickly adjust the flow and pressure according to the needs of the system, improve the dynamic performance and control accuracy of the system, and enable it to better adapt to complex and changing working conditions.
Multiple control forms: In order to adapt to different operating requirements, a wide range of control forms are provided, such as pressure compensation control, load sensing control, pressure and flow control, horsepower limitation, etc. The appropriate control method can be selected according to the specific application scenario to further optimize the system performance
Piston pump advantage
- Adjustable flow rate: Users can achieve stepless variable control by simply adjusting the inclination of the swash plate, thereby accurately controlling the flow rate according to actual working conditions, meeting different working requirements, and achieving energy saving and optimizing system performance.
- Good suction performance: Two housing oil drain holes are designed to ensure excellent suction performance, so that it can still operate smoothly under high load, reduce adverse effects such as cavitation, and improve the reliability and service life of the pump.
- Low noise: The noise generated during operation is low, which is very beneficial for improving the working environment and reducing equipment operation noise pollution, especially suitable for workplaces with high noise requirements.
Technical Parameters:
| Product family |
A10VSO |
| Type of actuation |
Variable pump, open circuit |
| Size (displacement) [cm3] |
71 |
| Control device |
DR remote controlled |
| Series |
Series 3, index 1 |
| Direction of rotation |
clockwise (w.view on shaft end) |
| Sealing material |
FKM (standard) |
| Shaft end |
ISO shaft key |
| Mounting flange |
ISO 3019-2 (metric), 2 hole |
| Working ports |
B flan I metr, S flan I metr. |
Application areas
Die-casting industry: In die-casting machines, A10VSO100 series plunger pumps can provide high-pressure, high-flow hydraulic power for die-casting molds, ensuring the smooth progress of the die-casting process and guaranteeing the quality and production efficiency of castings.
Shipbuilding industry: It can be used for the hydraulic system of ships, such as the drive of ship steering gear, anchor winch, mooring winch and other equipment, providing reliable power support for the navigation and operation of ships. Its high reliability and corrosion resistance can adapt to the harsh conditions of the marine environment.
Mining machinery: In mining equipment, such as excavators, loaders, crushers, etc., this series of plunger pumps can provide powerful power for the hydraulic system, meet the working requirements of the equipment under heavy load and high load, and improve the efficiency and economy of mining.
