Color Customization PV Series Hydraulic Axial Piston Pump For Excavator

Color Customization PV Series Hydraulic Axial Piston Pump For Excavator

Excavator Axial Piston Pump

Color Customization Axial Piston Pump

Place of Origin:

China

Brand Name:

Huatao Group

Model Number:

HT Piston Pump

Contact Us

Request A Quote
Product Details
Product:
Axial Piston Pump
Drive Mode:
Hydraulic Driven Reciprocating Pump
Straight Shaft Swashplate Piston Type:
Pressure Oil
Application:
Construction Machinery
HS Code:
8413503190
Cylinder Number:
Single Cylinder
Pump Shaft Position:
Horizontal
Power:
Hydraulic
Payment & Shipping Terms
Minimum Order Quantity
10
Price
650USD
Packaging Details
wooden box
Delivery Time
1 week
Payment Terms
L/C, T/T, Western Union
Product Description

Color Customization PV Series Hydraulic Axial Piston Pump For Excavator

Piston Pump Description

This serise axial piston variable displacement pumps, Series 20, are of swash plate construction with variable flow capability suitable for hydrostatic transmissions with closed circuit. The flow rate is proportional to the pumps driven speed displacement, which, in turn, is determined by the swash plate angle. The latter is infinitely adjustable between zero and maximum displacement. Flow direction is reserved by titling the swash plate to the opposite side of the neutral or zero displacement position.

- Suitable for a variety of applications
- Multiple displacements and options available
- 8 different frame sizes
- Engineered to provide a long service life and reliability
- Fixed displacement motor can be operated in either direction of rotation
- Multiple drive shaft options and control options
- Heavy duty bearings and shafts
- Easily serviceable
- Replacement parts also available

Piston Pump Parameter Table

Size Dimension PV serise piston pump
PV20 PV21 PV22 PV23 PV24 PV25 PV26 PV27
Max. displacement cm3 33,3 51,6 69,8 89,0 118,7 165,8 227,3 333,7
Max. flow dm3min-1 119,5 159,9 196,1 230,5 278,9 348,1 429,59 557,2
4 6 4 1 4 8 8
Charge pump cm3 12,3 12,3 18,03 18,03 18,8 32,8 32,8 65,5
Max. pressure MPa 35
Nominal pressure MPa 21
Max. pressure of control MPa 3,5
Charge pressure MPa 0,8 - 2,0
Max. pressure in case MPa 0,25 continuous 0,5 intermittent
Maximum speed + min-1 3590 3100 2810 2590 2350 2100 1890 1670
Minimum speed min-1 500
Nominal speed min-1 1500
Kinematic viscosity range of working fluid
- starting
- operating
- optimum

1000
12 - 600
25 - 35
mm2s-1
Kind of working fluid   mineral oil
Operating temperature oC - 40 to + 50
Max. temperature of working fluid in tank oC 80
Purity of working fluid µm 10
Direction of shaft rotation   clockwise or counter clockwise
Maximum swash plate angle o ± 18 o
Weight kg 45 55 63 78 124 164 212 270



Related Product

Color Customization PV Series Hydraulic Axial Piston Pump For Excavator 0

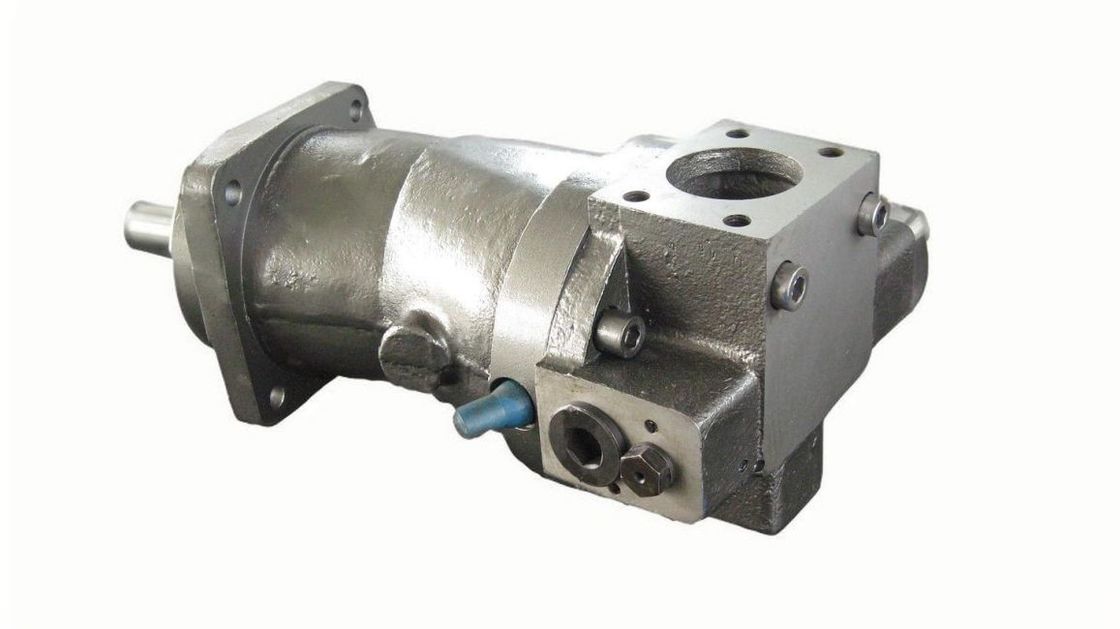

For the drum drive in mobile concrete mixers A4VTG071, A4VGT090 series.
-Variable axial piston pump of swash plate design for hydrostatic drives in closed circuit
-The flow is proportional to the drive speed and displacement.
-The flow increases as the angle of the swash plate is adjusted from zero to its maximum value.
-Flow direction changes smoothly when the swash plate is moved through the neutral position.
-Two pressure-relief valves are provided on the high pressure ports to protect the hydrostatic transmission (pump and motor) from overload.
-The high-pressure relief valves also function as boost valves.
-The integrated boost pump acts as a feed pump and control pressure supply.
-The maximum boost pressure is limited by a built-in boost pressure-relief valve.



Color Customization PV Series Hydraulic Axial Piston Pump For Excavator 1

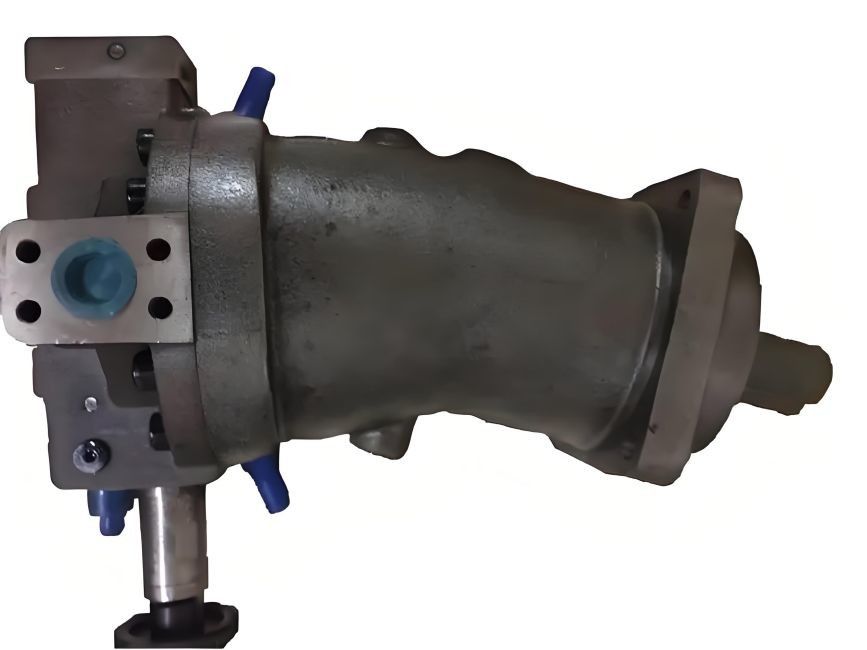

Variable A6VM motor with axial tapered piston rotary group of bent axial design, for hydrostatic drives in open and closed circuits
- For use in mobile and stationary applications
- The wide control range enables the variable motor to satisfy the requirement for high speed and high torque.
- The displacement can be infinitely changed from Vg max to Vg min = 0.
- The output speed is dependent on the flow of the pump and the displacement of the motor.
- The output torque increases with the pressure differential between the high-pressure and low-pressure side and with increasing displacement.
- Wide control range with hydrostatic transmissions
- Wide selection of control devices
- Cost savings through elimination of gear shifts and possibility of using smaller pumps.


Color Customization PV Series Hydraulic Axial Piston Pump For Excavator 2

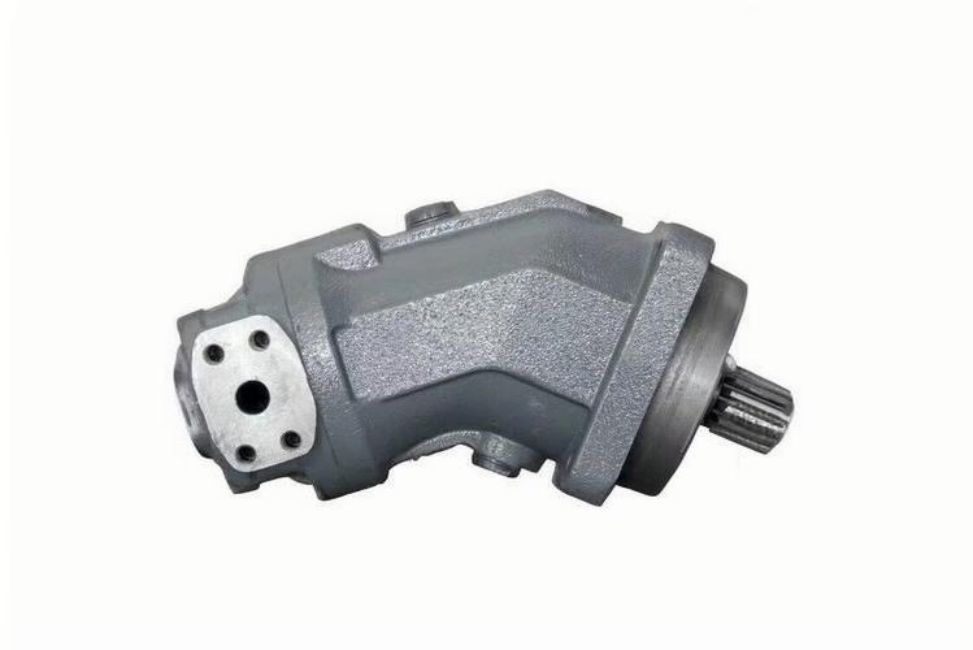

The A2F axial piston unit of bent axis design with fixed displacement, for use as either pump or motor in hydrostatic drives, in open or closed circuit.
If operated as a pump, the flow is proportional to the drive speed and displacement. If operated as a motor, the output speed is proportional to the swept volume and inversely proportional to displacement. The output torque increases with the pressure drop between the high and low pressure sides.
- High performance rotary group with well-proven spherical control area with the advantages, self-centering low peripheral speed, high efficiency.
- For use in mobile and stationary applications areas
- Output flow is proportional to drive speed and displacement
- The drive shaft bearings are designed to give the service life expected in these areas of operation



Packing &Delivery

Color Customization PV Series Hydraulic Axial Piston Pump For Excavator 3



FAQ

Q: What can you buy from us?
A: Hydraulic pump, Hydraulic valve, Hydraulic motor, Hydraulic spare part

Q:why should you buy from us not from other suppliers?
A:We have more than 14years experience in hydraulic products. With a complete supply chainsystem and factory and possess professional technical team, manufacturing team.

Q:What is the delivery time of our company?
A:Normally 7days after received payment.lf in stock, we will ship within 48 hours

Q:Can i make my own brand on the products?
A:Yes,All orders can be marked your own brand and code
